Encoder Disk
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Main PCA, see Main PCA on page 311.
6. Remove the Encoder PCA and Index, see Encoder PCA and Index on page 319.

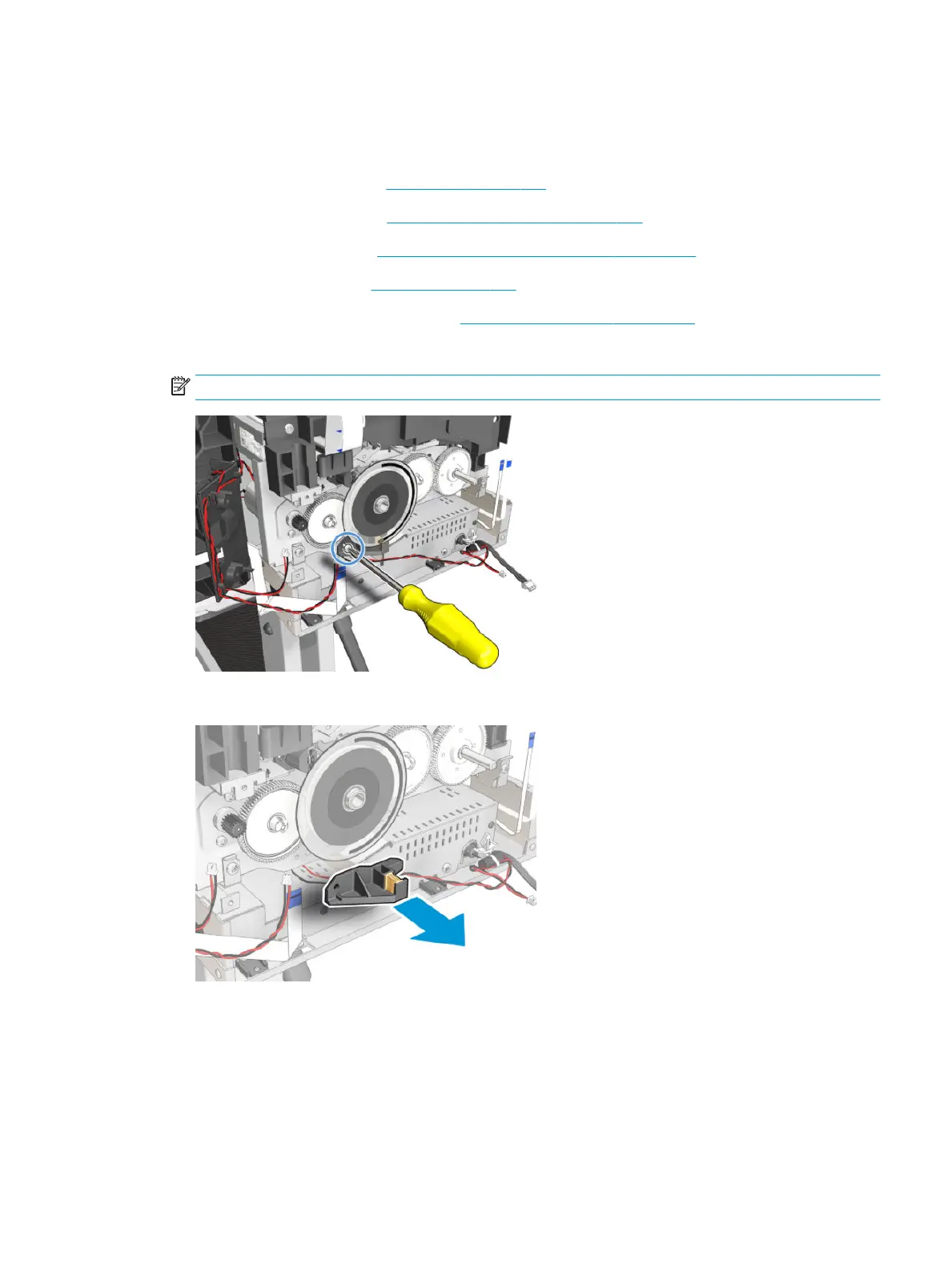

7. Remove one T-10 screw.
NOTE: Image shown is from another product, and for reference only.
8. Remove the Holder Brush Feed Shaft.
ENWW Encoder Disk 323
