Right Gear Train Module
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
4. Remove the Service Station, see Service Station on page 334.
5. Remove the Prime Pump, see Prime Pump on page 340.
6. Remove the Multi-Sheet Tray, see Multi-Sheet Tray Assembly on page 367.

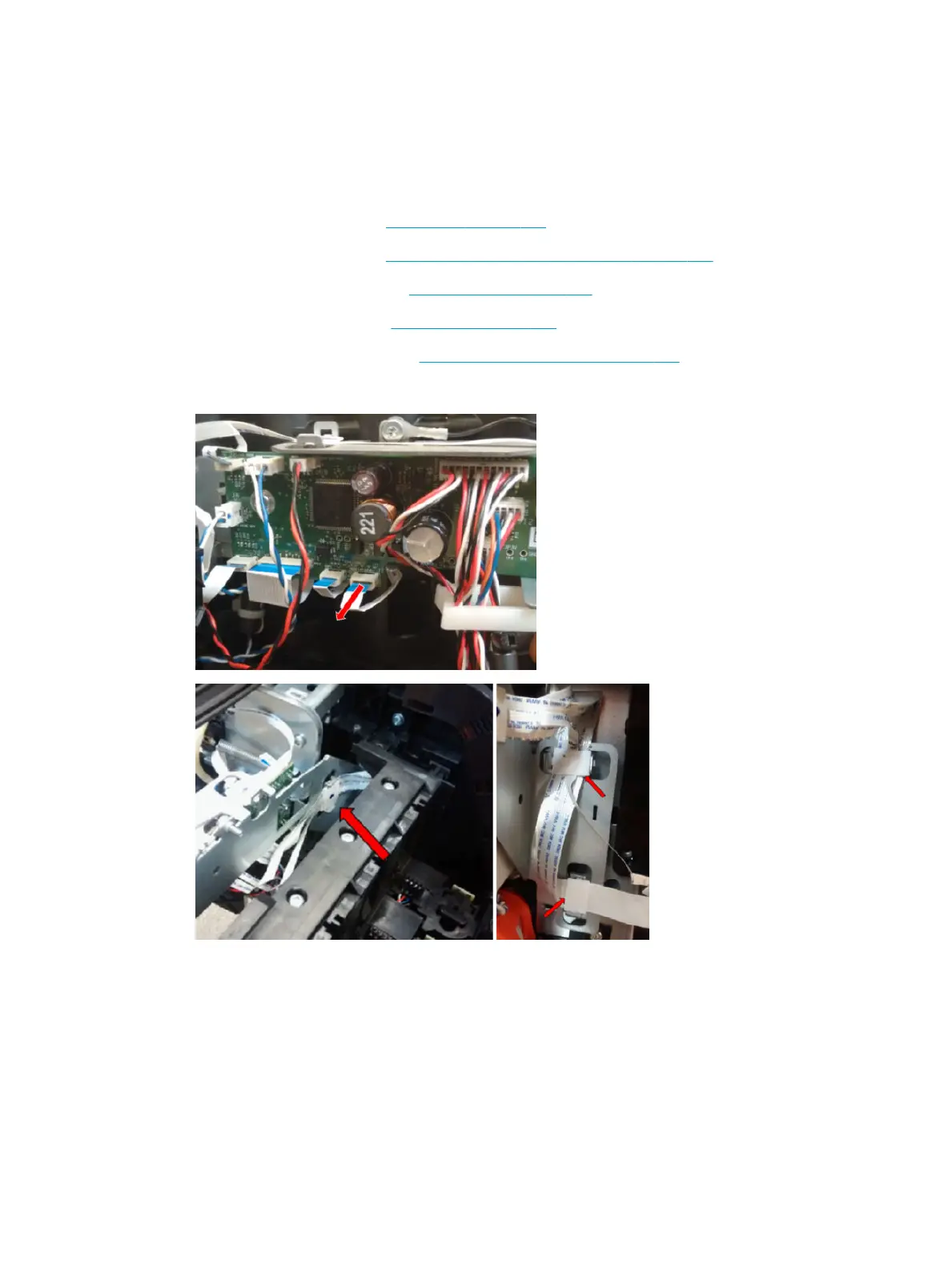

7. Disconnect the at cable.
ENWW Right Gear Train Module 353
