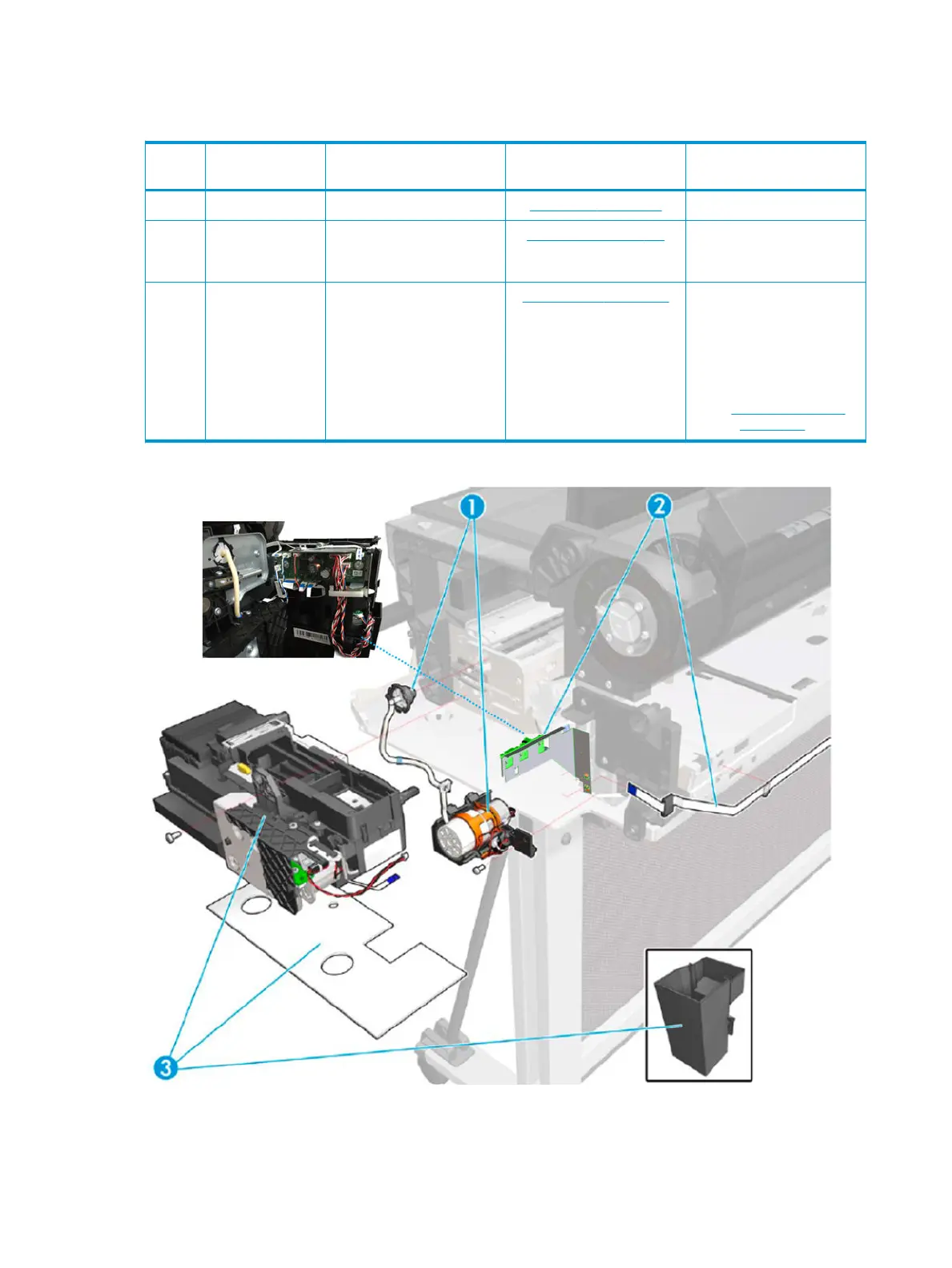

Right-hand assemblies
HP part number Part description Removal and installation
reference
Comments
1 F9A30-67048 Prime pump SV kit Prime Pump on page 340
2 F9A30-67004 Print Bundle PCA SV Bundle Board on page 406 SV kit includes FFC connecting
Printer Bundle Board with Main
PCA.
3 F9A30-67052 Service Station Assembly (see
real image below)
Service Station on page 334 Includes the Service Station
motor, encoder, spittoons,
wipers, extra absorber pad (in
case of need), extra left
spittoon (in case of need), and
gloves. The Left Spittoon is
available also in a separate kit
(see Left-hand assemblies
on page 236).
