Power Supply
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.

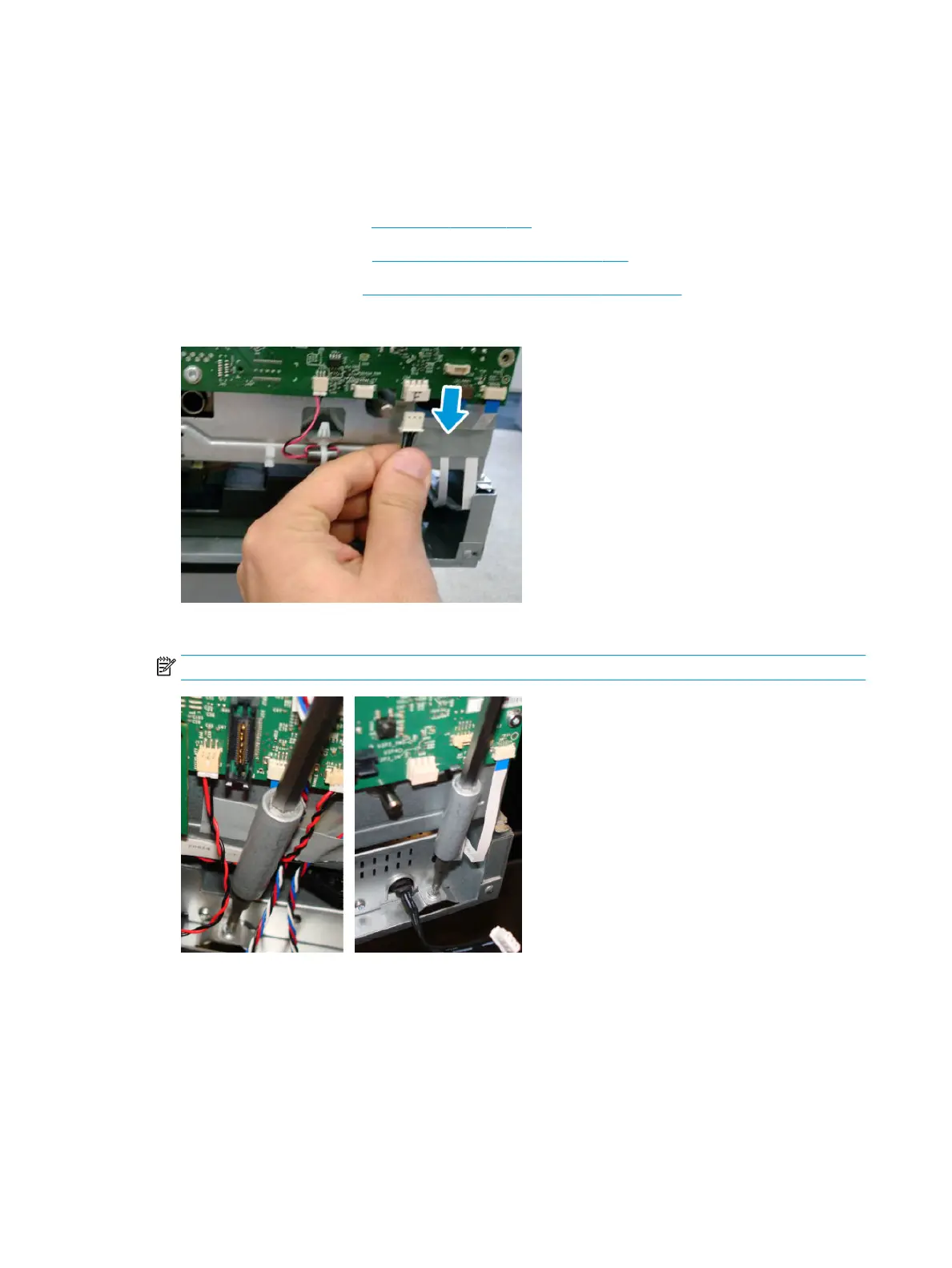

5. Disconnect the Power Supply cable from the Main PCA.
6. Remove two T-10 screws.
NOTE: Image shown is from another product, and for reference only.
