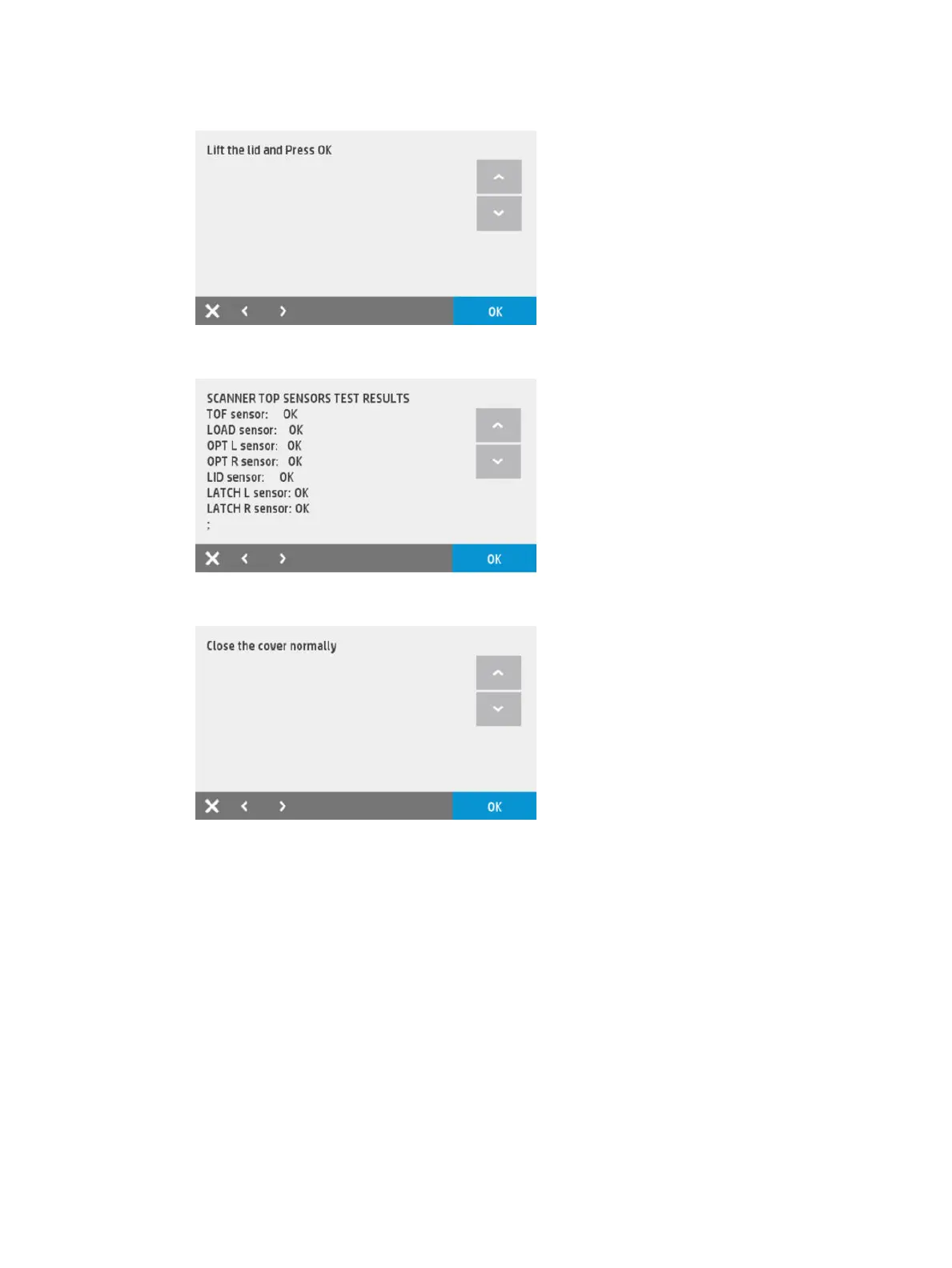

4. After pressing OK, the following screen is shown.
5. Now lift the lid and press OK.
6. Press OK then the following screen is shown.
7. Close the lid normally.
The test is able to detect if the sensor changes the state. It can be sensor, cable, or Scanner Bundle
Board.
7.2 Scanner media drive
Elements tested:
●
Bottom of Form (BOF) sensor
●
OPT Wheel encoder and index
●
Motor, motor encoder
Procedure
ENWW Support menu 213
