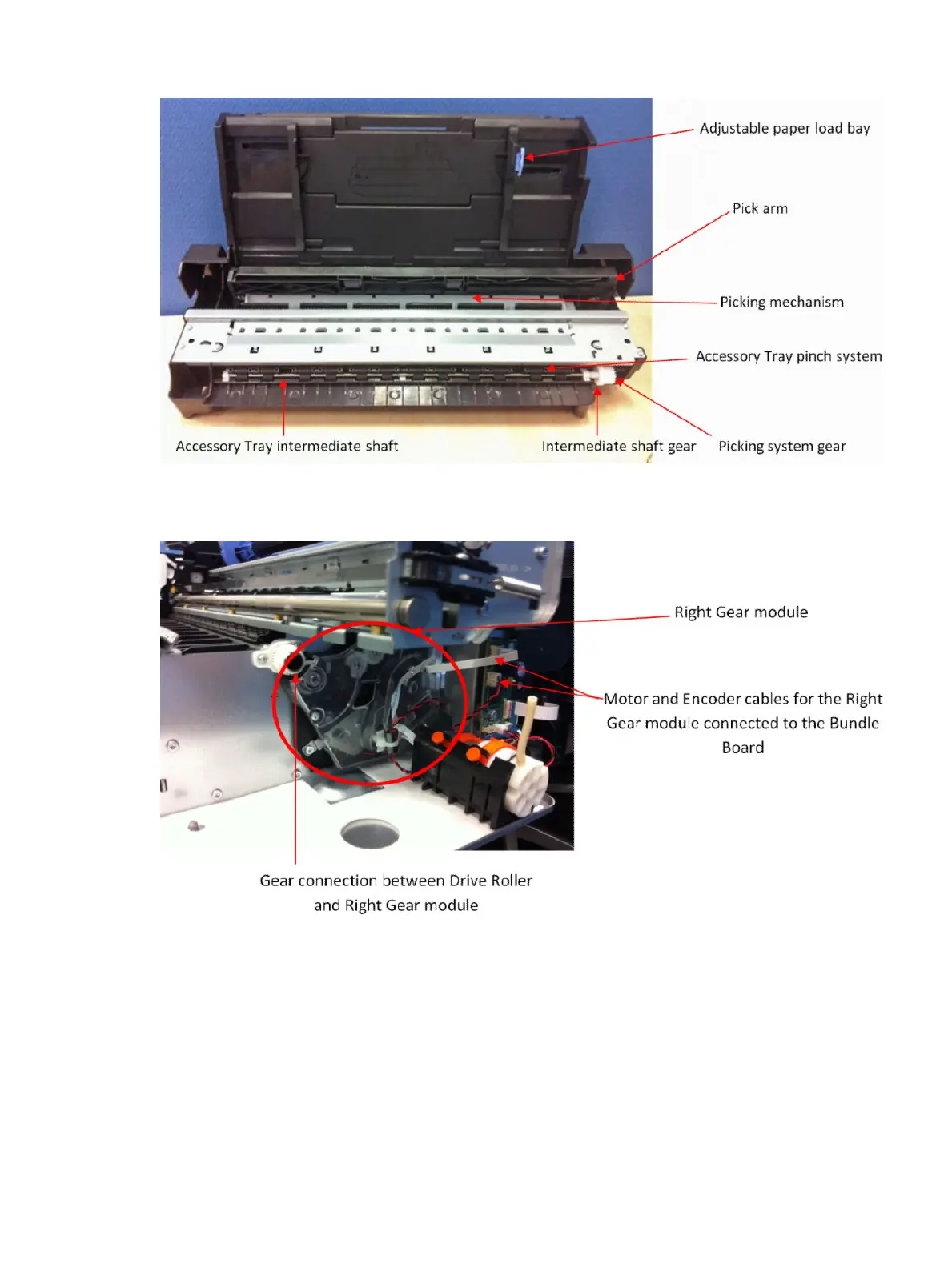

The Right Gear module has two main functions. It contains the motor encoder and gear drive system for the
picking mechanism, and it contains the gear train system to transmit the movement from the drive roller to
the accessory tray.
Right Gear module functionality
The Right Gear module has two dierent functions associated with the Multi-Sheet Tray.
1. The paper drive from the Multi-Sheet Tray into the platen area (until the cut sheet reaches the drive
roller area).
ENWW Subsystems 27
