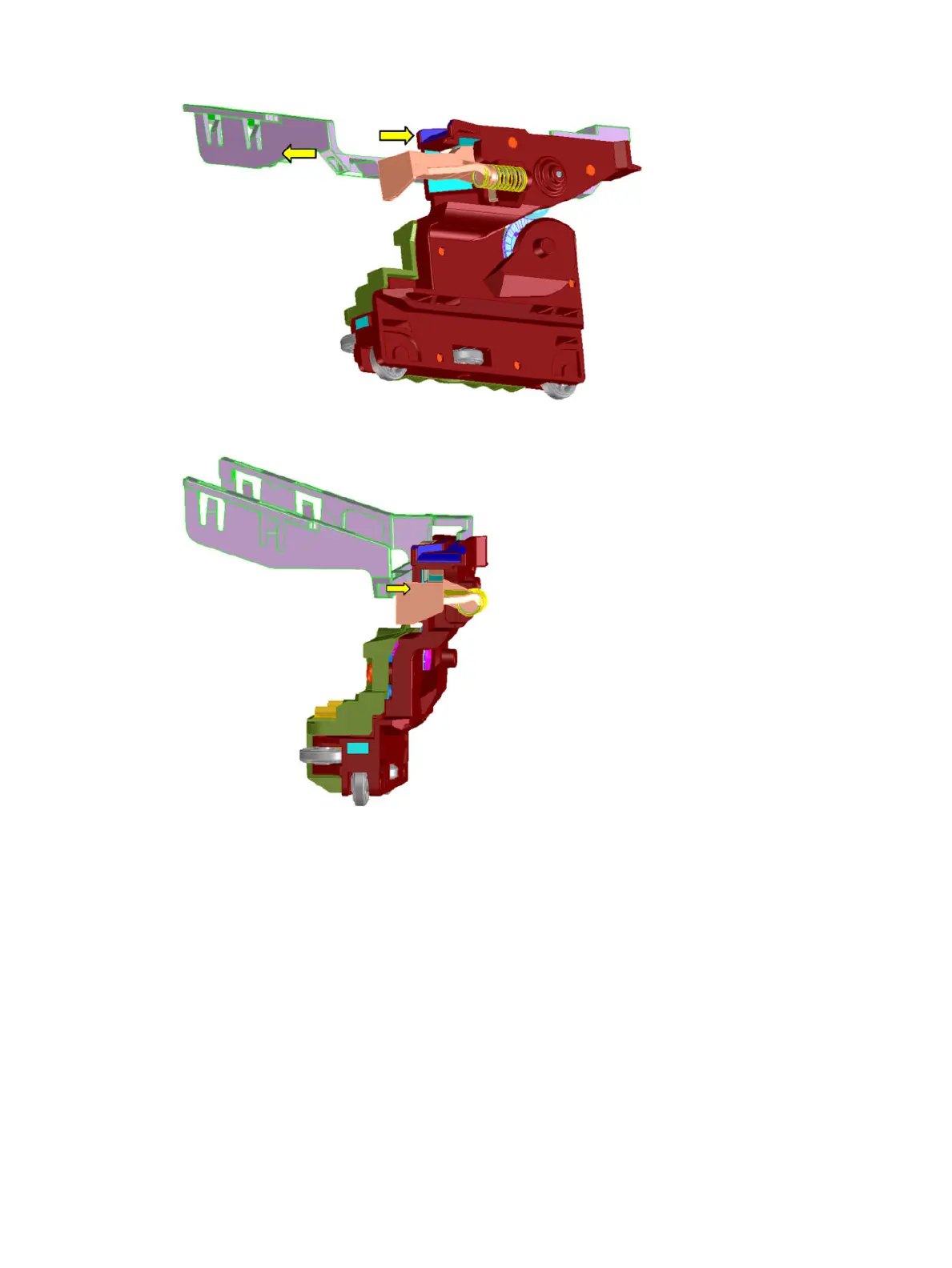

2. Move-away action: the Cutter Hook deactivates from the bridge by passing in front of it.
Accessory tray and right gear module
Functionality
The accessory tray holds and loads the cut-sheet paper for the printer. The accessory tray itself is a
completely mechanical system with no electronics or motors. All the motion drives for both picking and paper
drive are or created or transmitted by the Right Gear module located on the right-hand side of the printer,
behind the Service Station.
26 Chapter 1 Printer fundamentals ENWW
