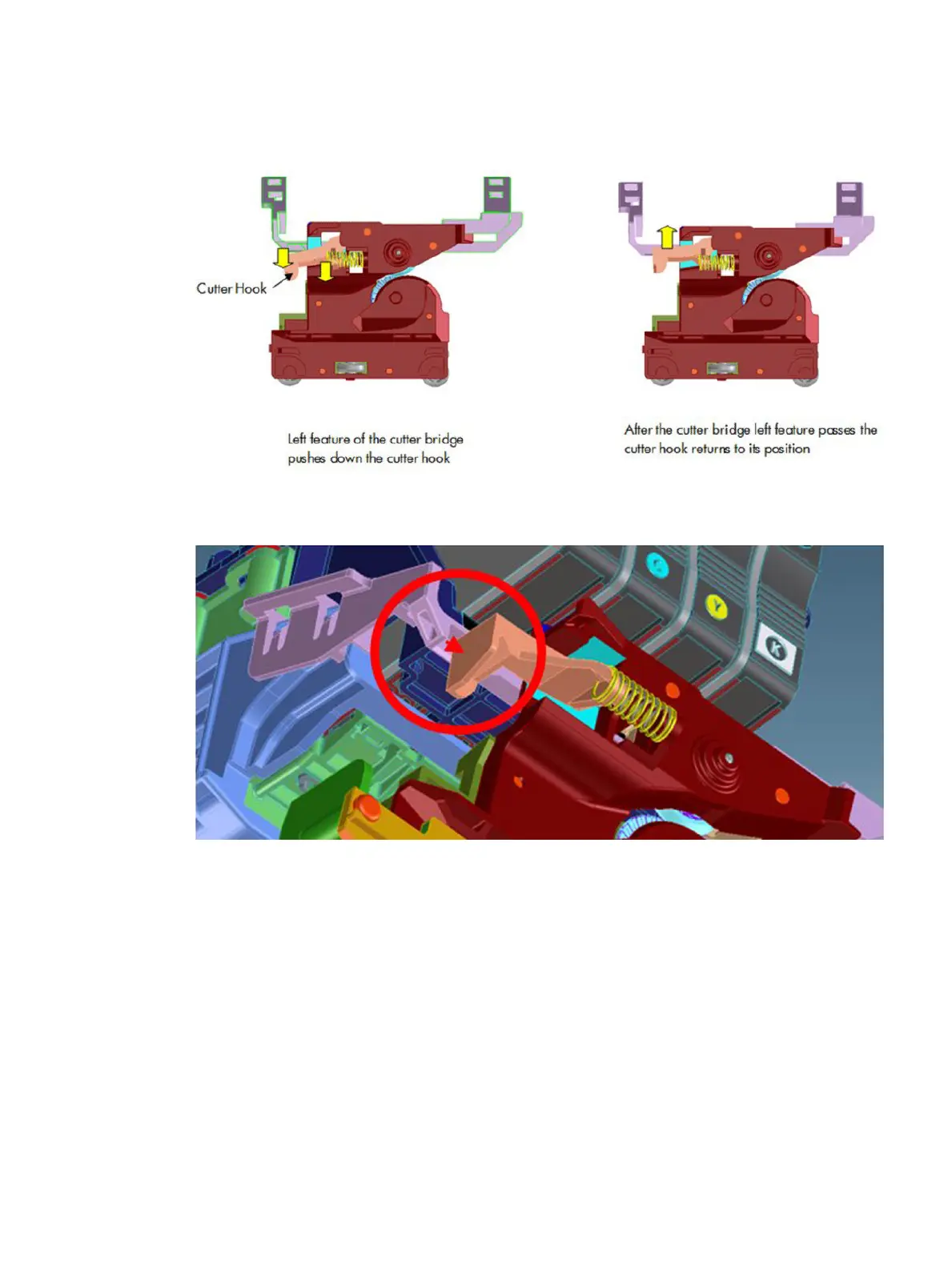

2. Hook catching: The cutter bridge continues moving to the left pushing down the cutter hook (in orange),
after the left side of the cutter bridge passes the Carriage stops and the cutter hook returns to its
position due to its spring motion.
3. Cutter action: The left feature of the cutter bridge pushes the cutter to the left, performing the cutting
operation.
How deactivation works
1. Disengagement: Hook Bridge changes direction moving now from right to the left, so that Cutter Hook
slides out of the Cutter Catch Feature.
ENWW Subsystems 25
