Main PCA
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.

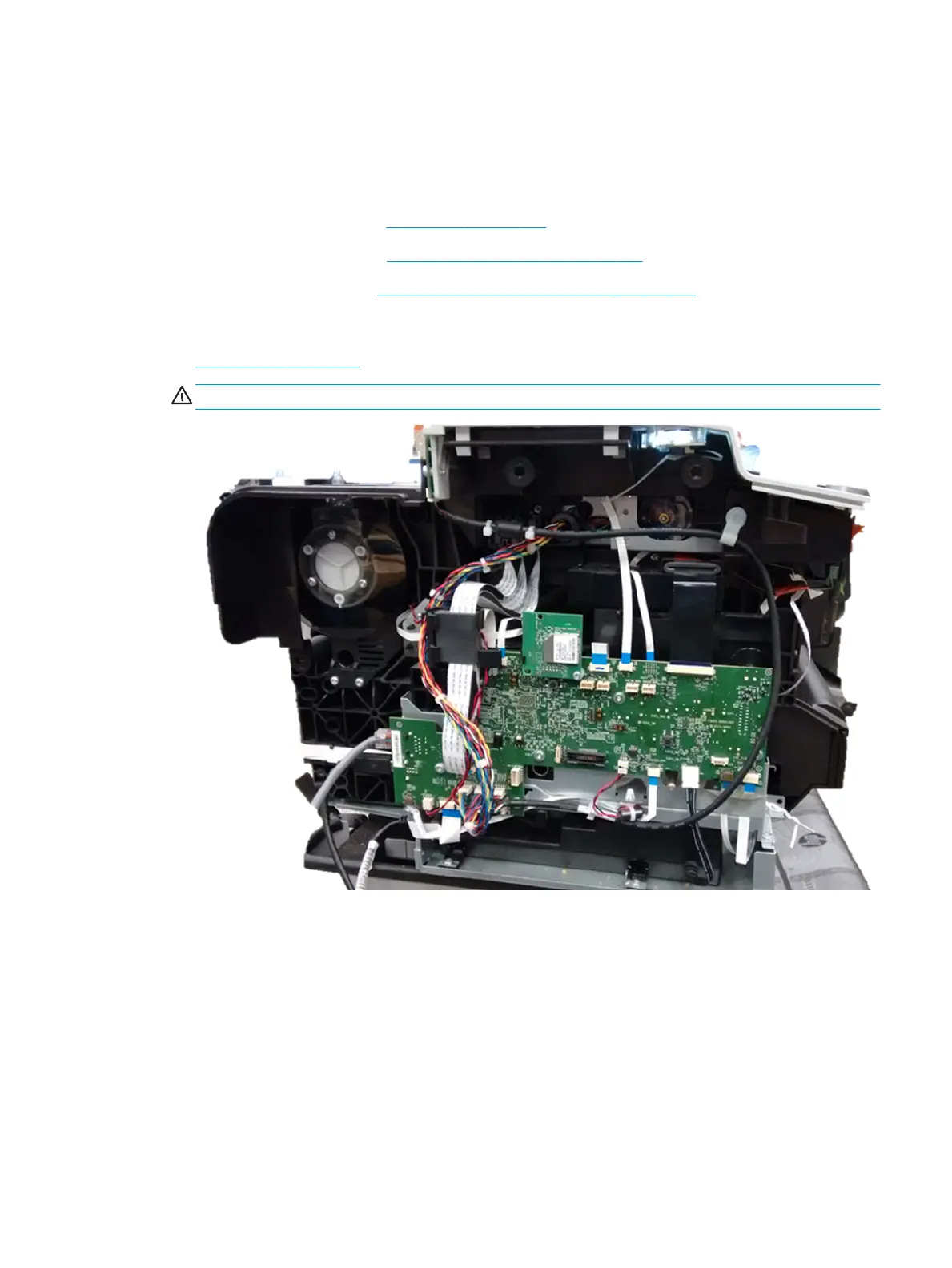

5. Disconnect all cables (T730: 7 FFC cables on top, 4FFC cables underneath, and 3 motor cables. T830:
MFP: Scanner FFC 3 cables on top, 7 FFC cables on top, 4FFC cables underneath, and 5 motor cables). See
The Main PCA on page 42.
CAUTION: Take care! Do not pull up so hard as to damage the connectors .
ENWW Main PCA 311
