Bundle Board
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front cover, see Front Cover on page 261.
3. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
4. Disconnect four motor cables.

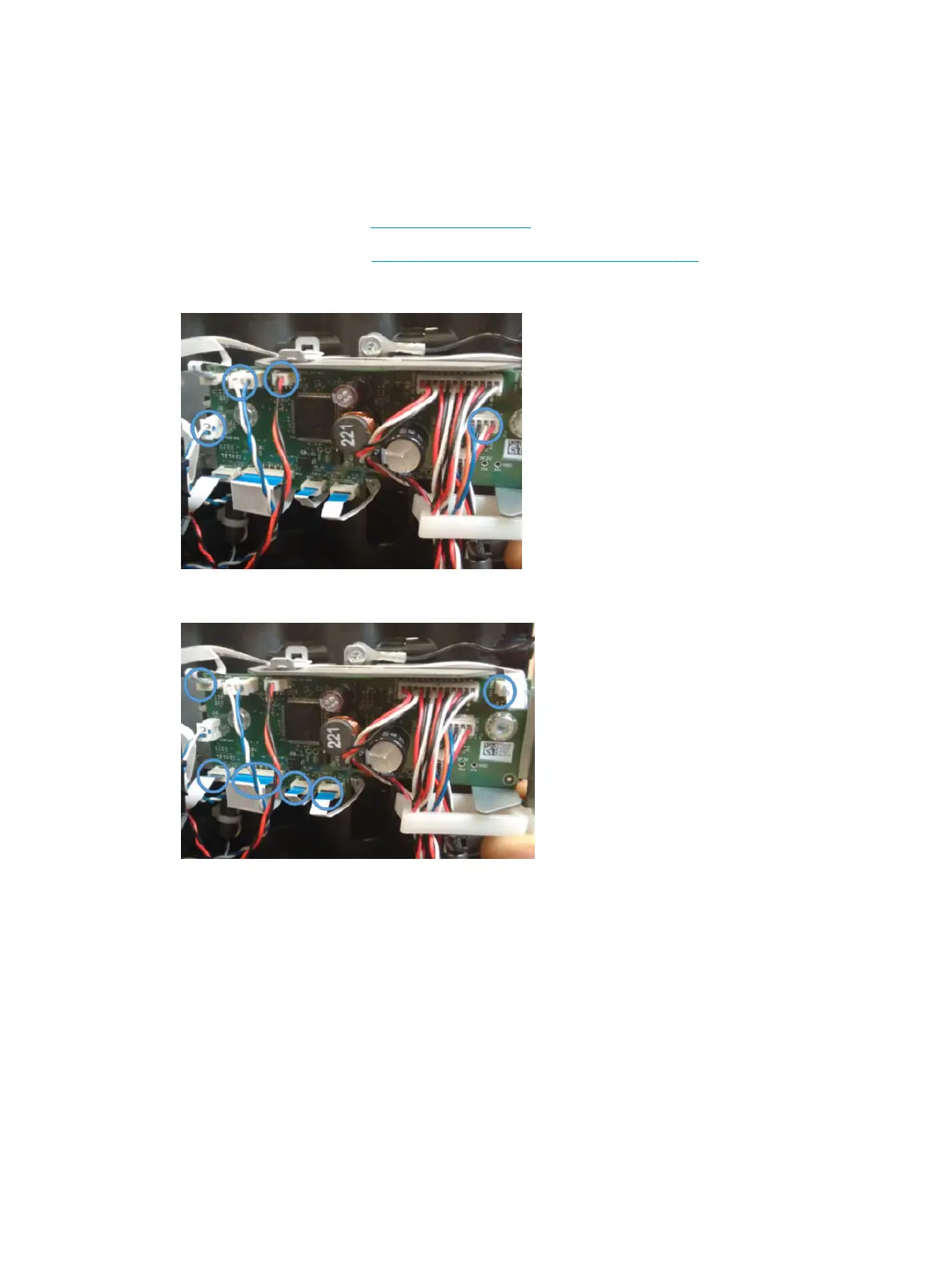

5. Disconnect six FFC (at exible cables) from the Bundle Board.
406 Chapter 5 Removal and installation ENWW
