The supplies end is embedded in the Ink Supply Station and its design is very similar to other products. There
is a risk that when removing the tubes from the printer some ink spillage can occur.

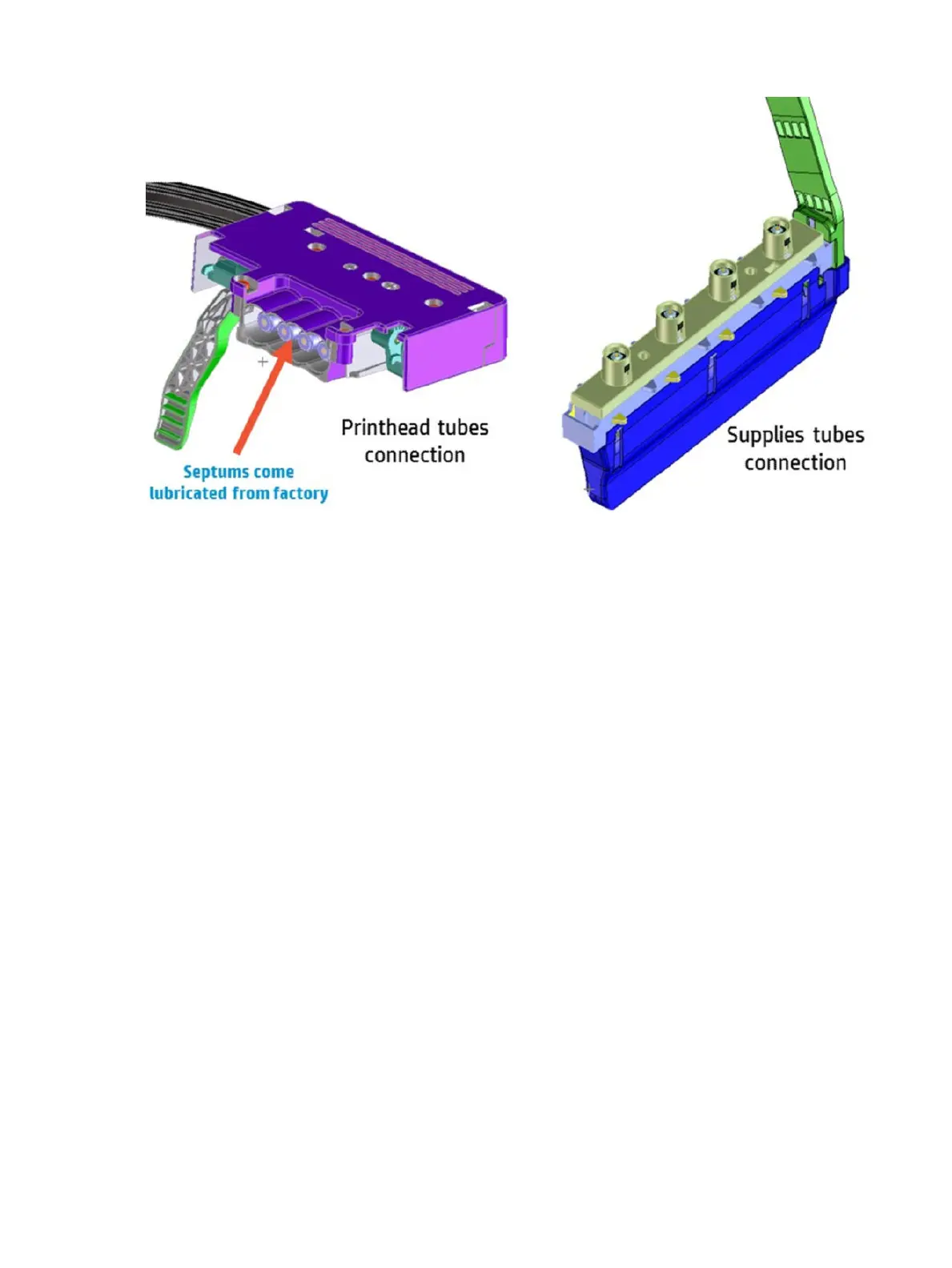

Printhead-Ink Tubes connection
This latch allows for the removal and installation of the o-axis ink tubes that go to the printhead assembly.
The ink tubes come connected to the printhead and are pre-installed in the carriage, but manual connection
must be performed by the customer when a printhead replacement is required.
18 Chapter 1 Printer fundamentals ENWW
