Upper-Roll Paper Guide
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Back Cover, see Back Cover on page 275.
3. Remove the Roll Cover, see Roll Cover on page 272.
4. Remove the Spindle.

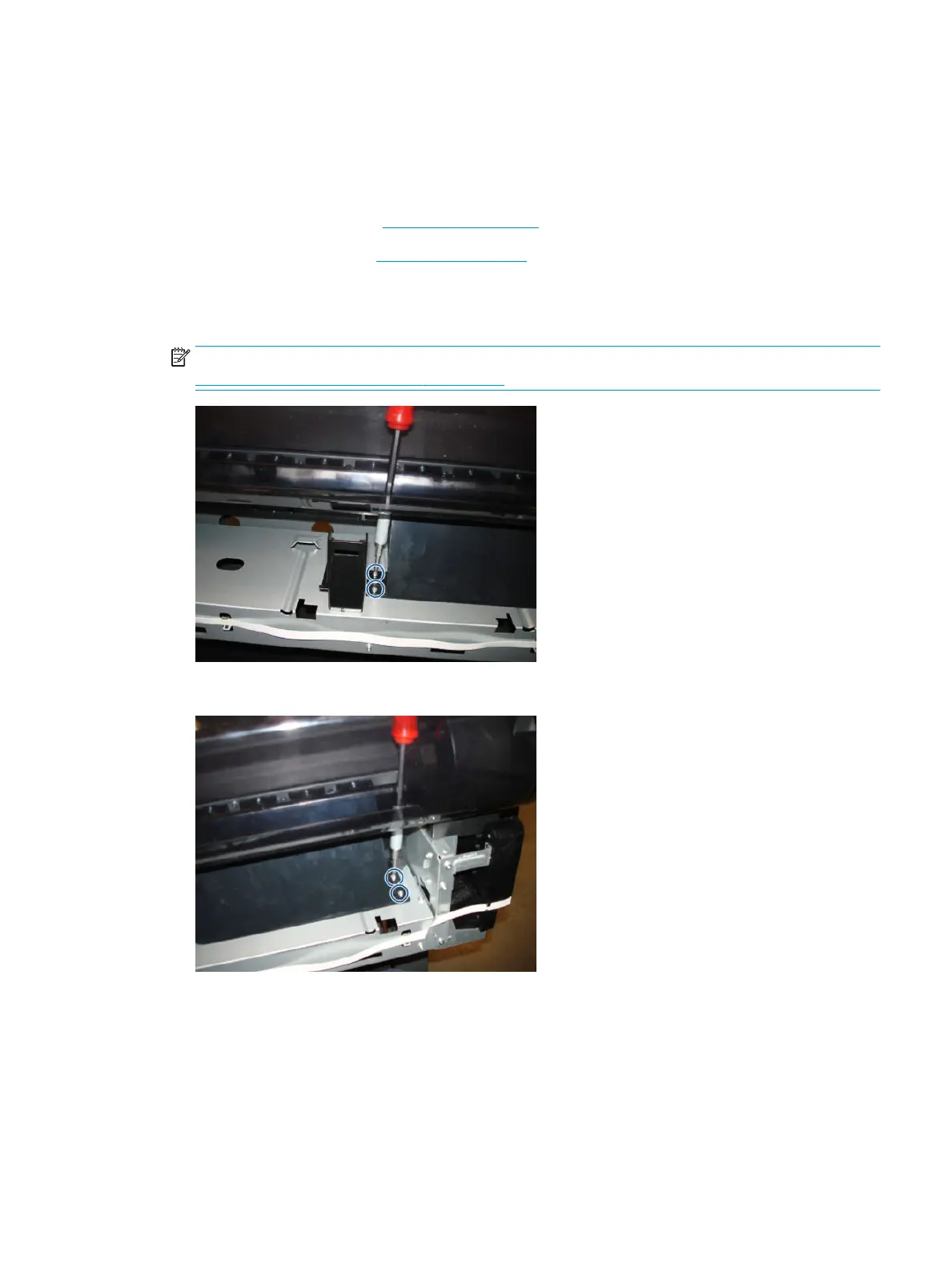

5. Remove two T-10 screws.
NOTE: The Multisheet Tray Sensor needs to be removed partially in order to access the screws. See
Multi-Sheet Tray Sensor Assembly on page 385.
6. Remove two T-10 screws.
ENWW Upper-Roll Paper Guide 289
