Calibration Surface Gear Train F9A30-67028
Removal
Tools: Screwdriver Torx 10
1. Remove the right cover, see Right Cover MFP SV Kit F9A30-67011 on page 264
2. Remove the top right cover.
3. Remove the Bottom Platen, see Bottom Platen F9A30-67042 on page 431.

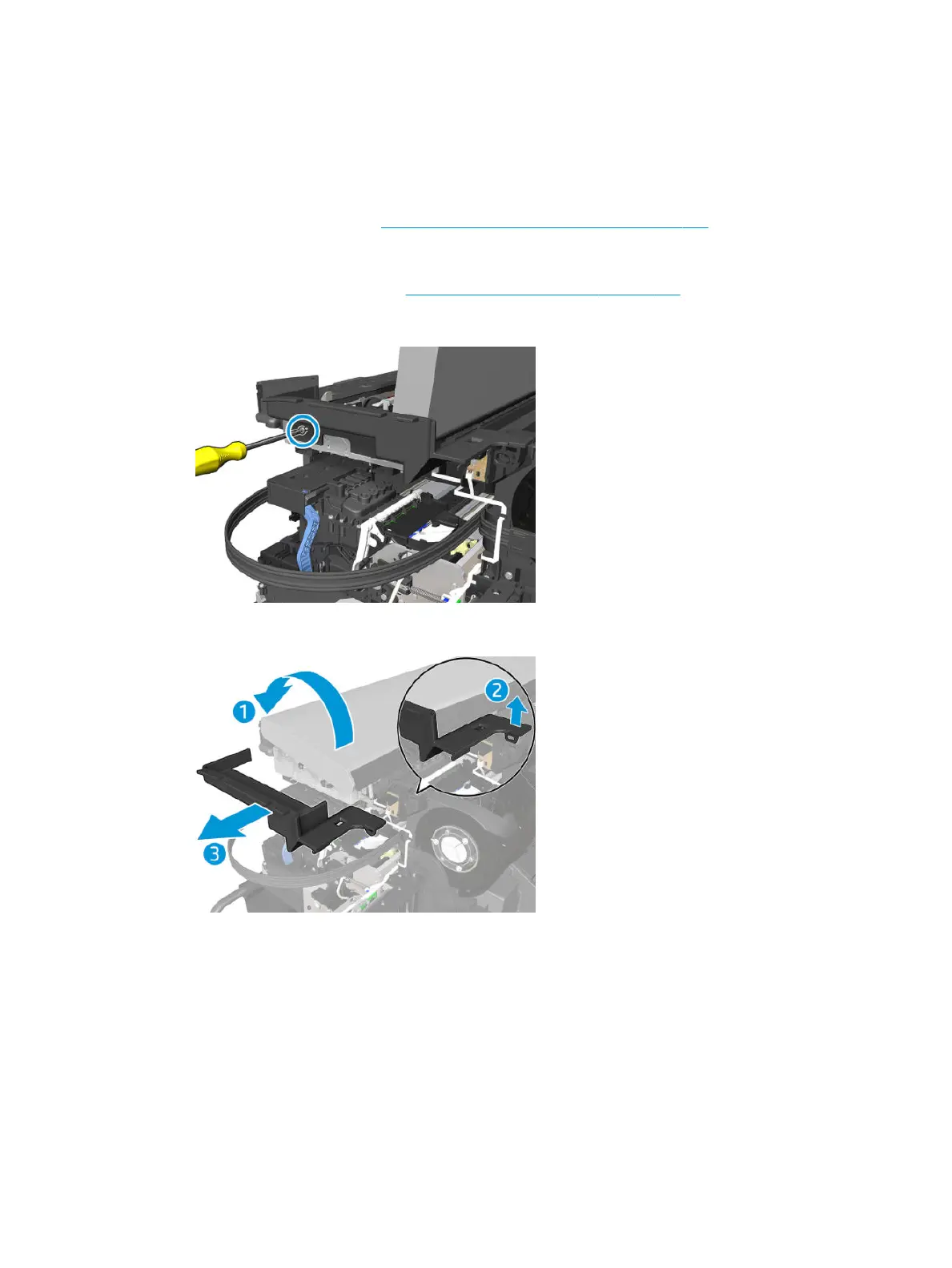

4. Remove one screw.
5. Rotate the Scanner Top Cover and remove the Top Right Cover.
ENWW Calibration Surface Gear Train F9A30-67028 489
