HP DesignJet T730

Integration with the printer

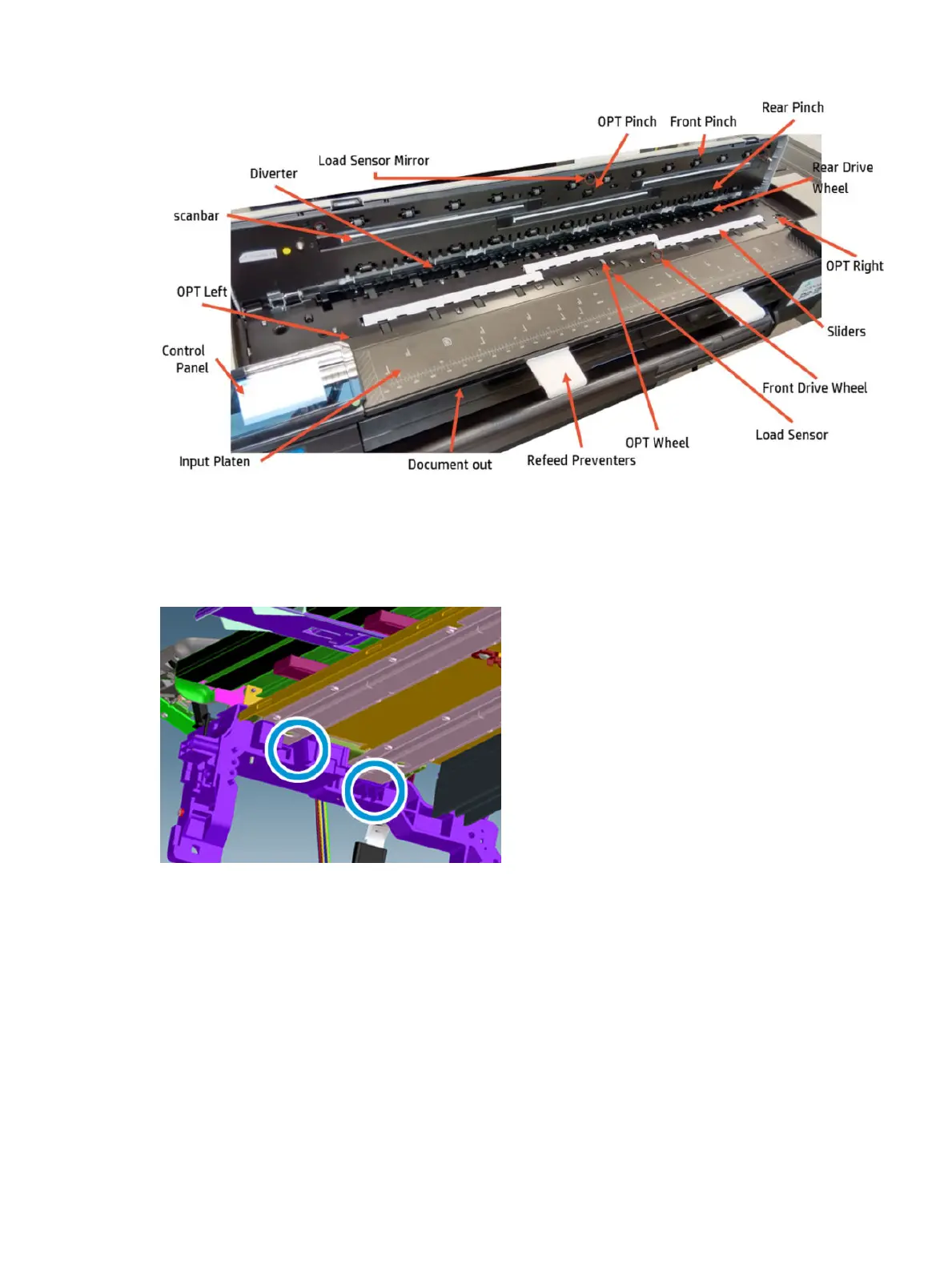

The scanner is attached to the printer with 4 screws. Assembly is from top down, but it is necessary to slide it
to the left slightly to ensure that the tabs for the screws on the right on are not damaged. For this reason
there are guides on the left arch:
Location of the screws:
ENWW Subsystems 49
