The Printer Bundle Board

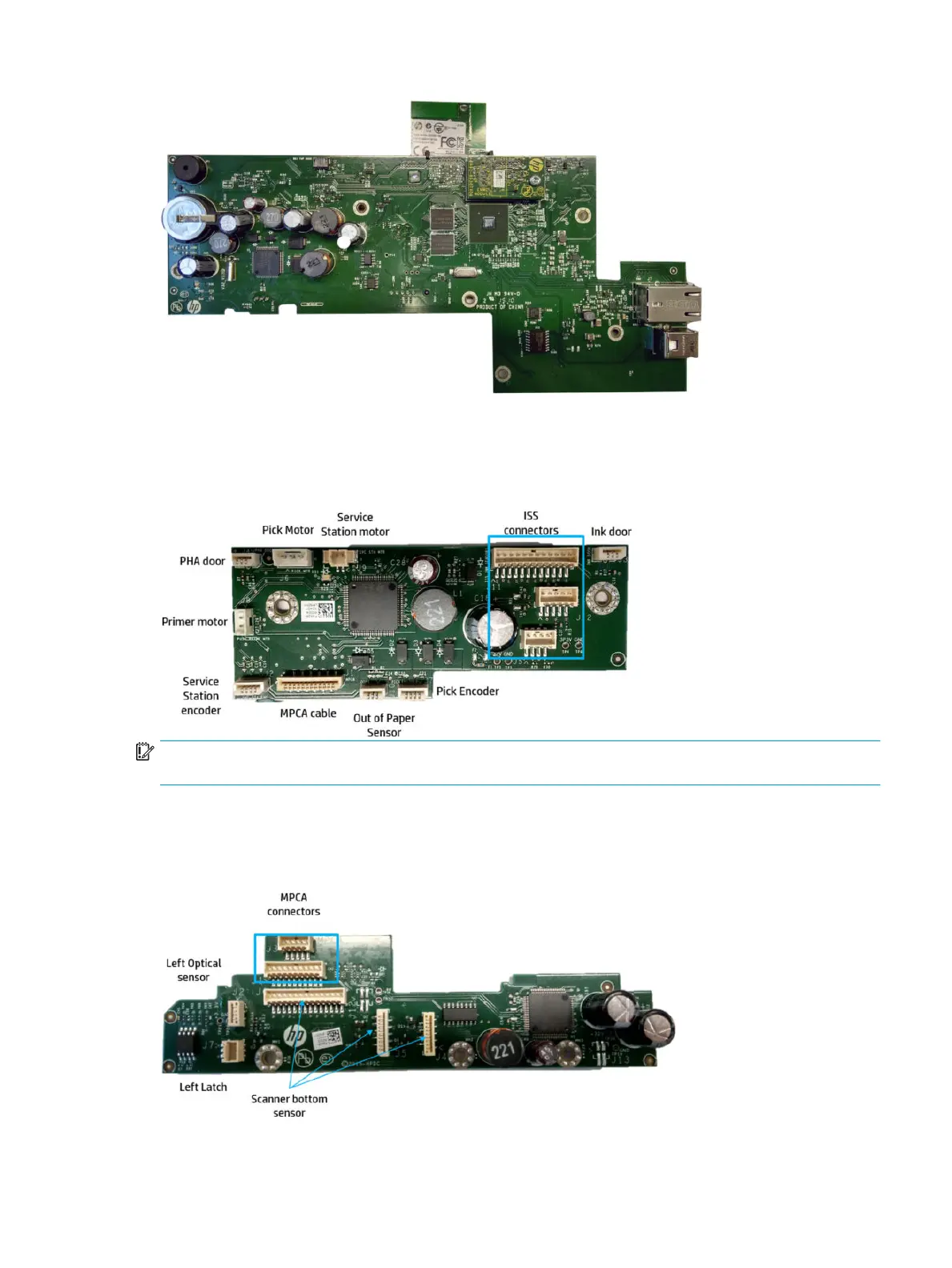

The Bundle Board is located on the right-hand side of the printer, this board includes a driver ASIC to control
and manage the motor, encoder, and sensors located on the right-hand side of the printer.
IMPORTANT: The pick encoder and Service Station cables are not poka-yoke cables: it is possible to connect
them incorrectly, in which case a system error will result.
The Scanner Bundle Board (HP DesignJet T830 MFP only)
The Scanner Bundle board is located inside the scanner. It manages scanner sensors and the scanner motor
and acts as back up memory for scanner calibrations.
ENWW Subsystems 43
