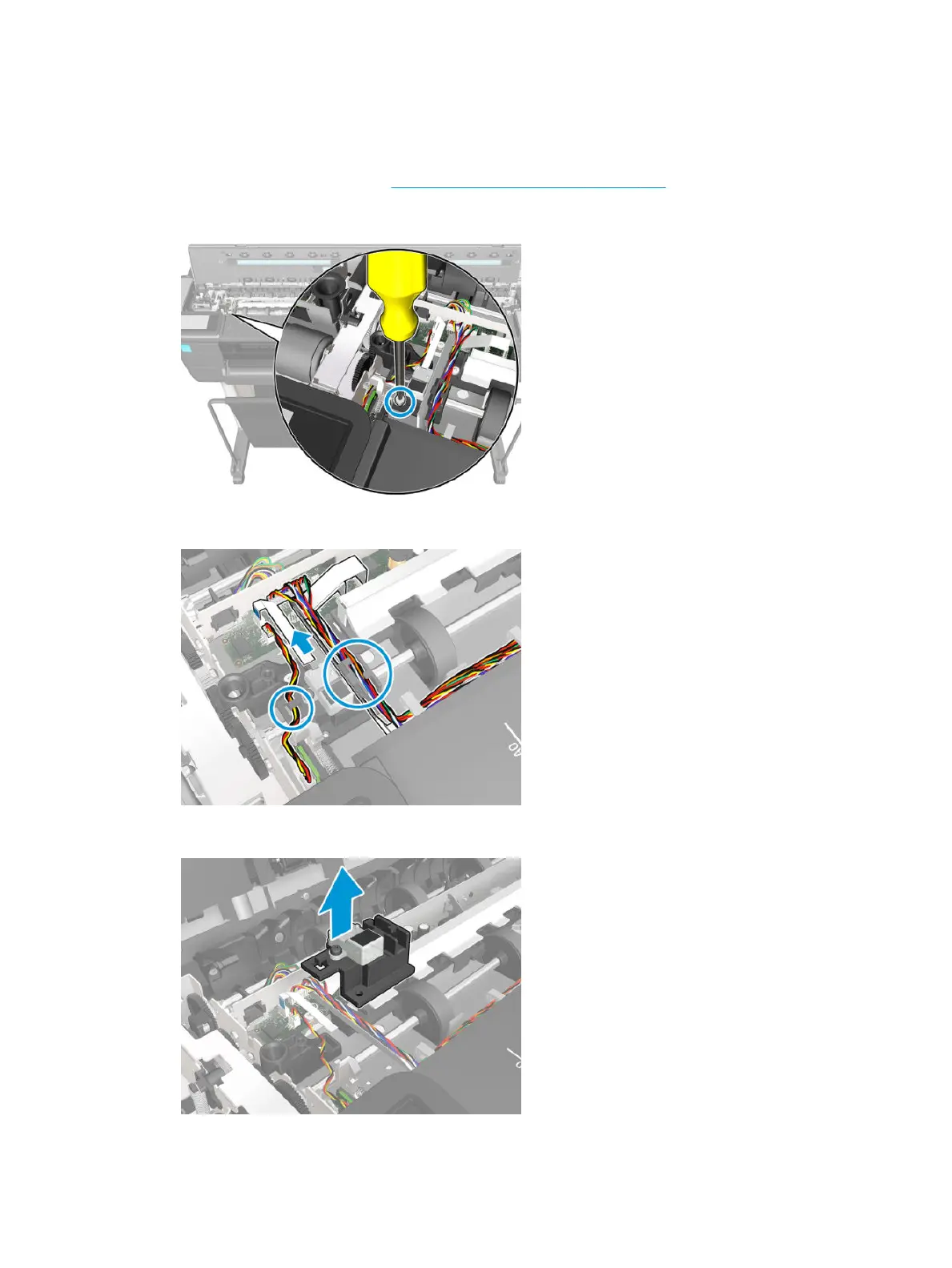

Left Optical Sensor F9A30-60188
Removal
1. Remove the Bottom Platen, see Bottom Platen F9A30-67042 on page 431.
2. Remove one screw.
3. Disconnect the cable and detach all cables from the Mount OPT Left Optical Sensor.
4. Remove the OPT Left Optical Sensor.
462 Chapter 5 Removal and installation ENWW
