Diverter bottom part F9A30-67062
Removal
Tools: Screwdriver Torx 10 and pliers
1. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
2. Remove the Rear Cover, see Rear Cover (MFP only) on page 464.
3. Remove the Scanner Top Cover, see Scanner Top Cover F9A30-67015 on page 423.
4. Remove the Diverter, see Diverter SV F9A30-67040 on page 516.

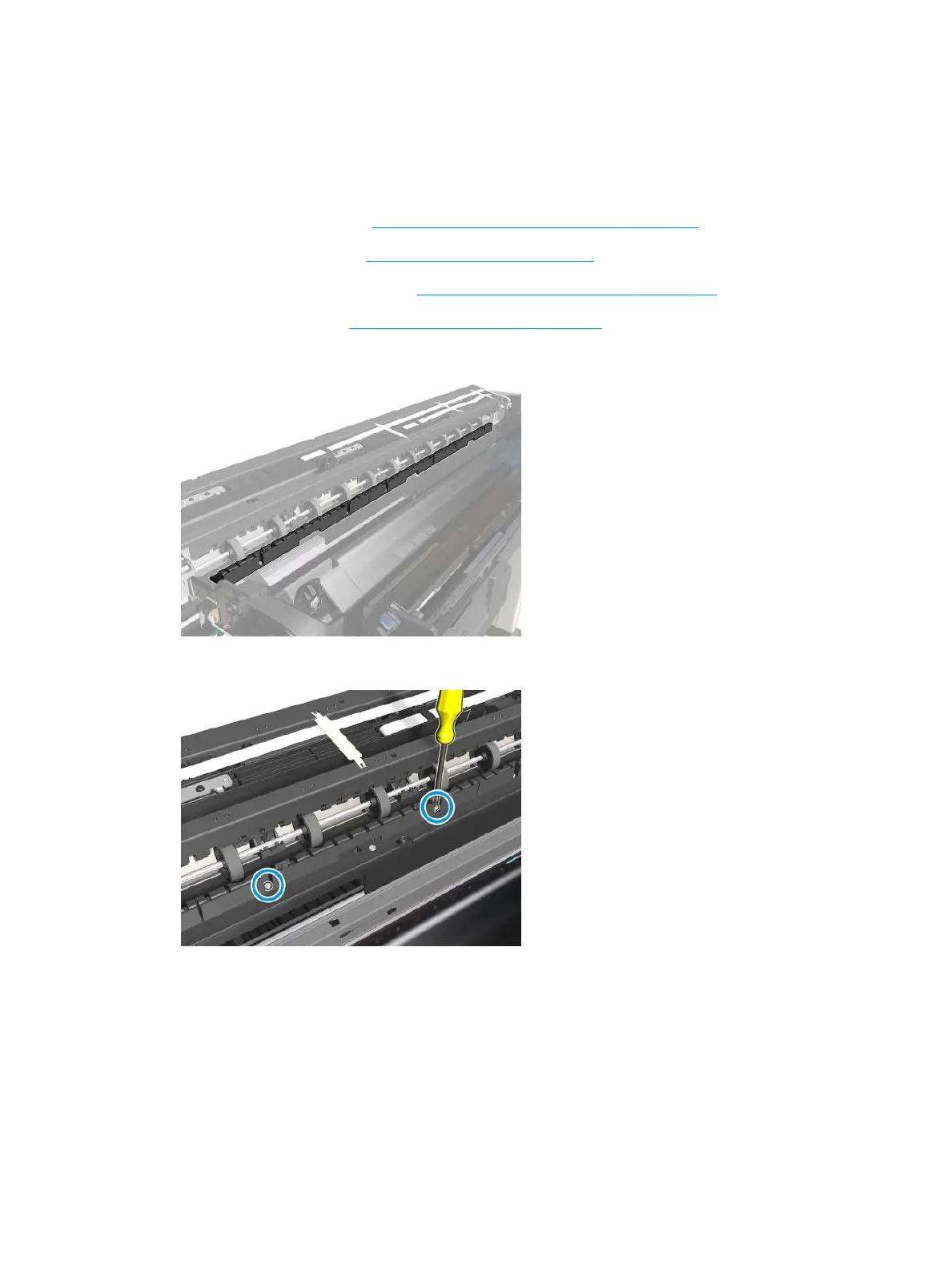

5. Locate the three diverter bottom modules.
6. Remove two screws from one of the modules.
520 Chapter 5 Removal and installation ENWW
