Output Tray Extender Sensor Cable
Removal
1. Remove the Front Cover, see Front Cover on page 261.
2. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
3. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
4. Remove the Output Tray Sensor, see Output Tray Sensor Assembly on page 395.

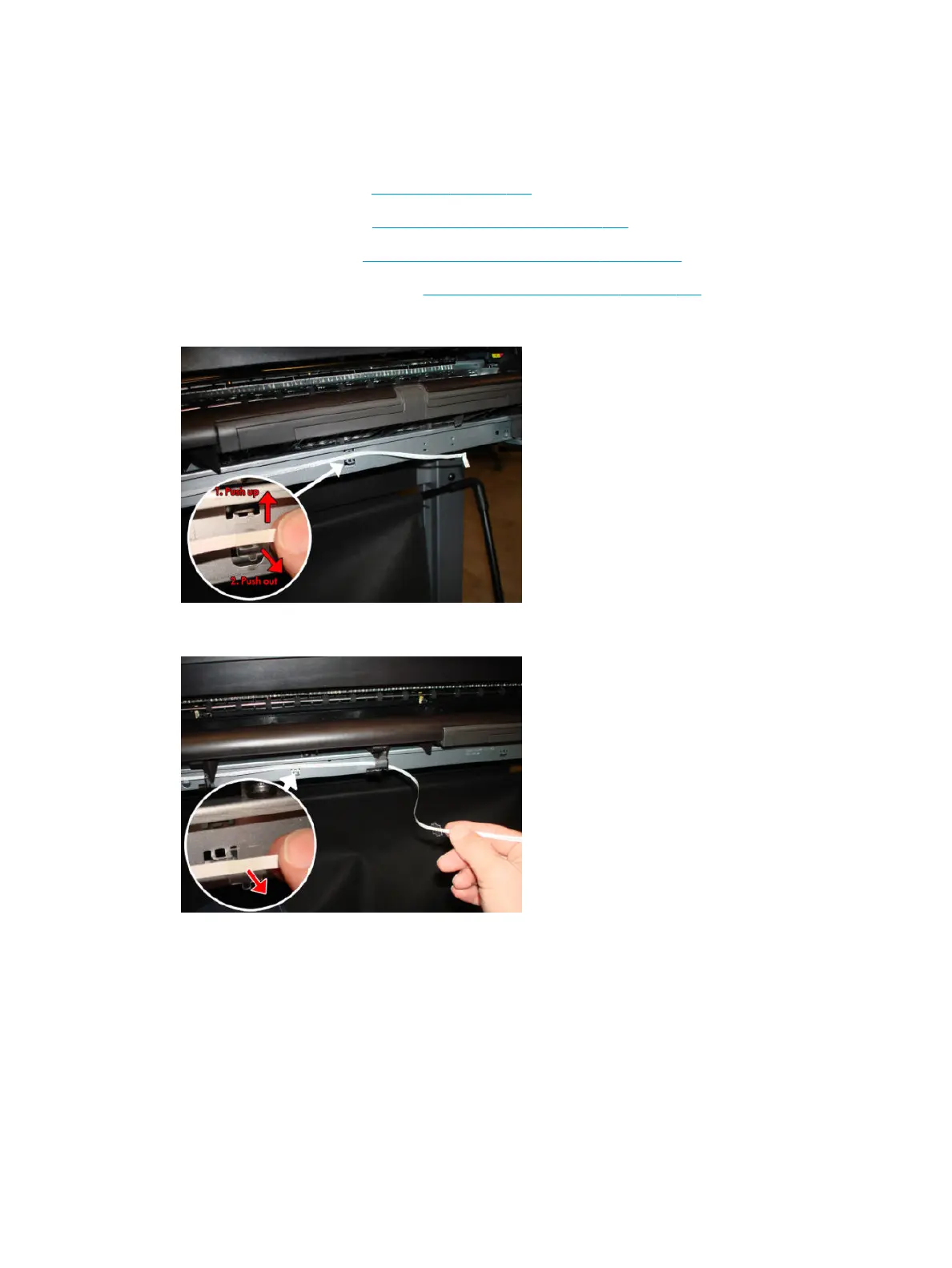

5. Unclip the locator FFC from the right of the Front Cross Beam.
6. Unclip the locator FFC from the middle of the Front Cross Beam.
398 Chapter 5 Removal and installation ENWW
