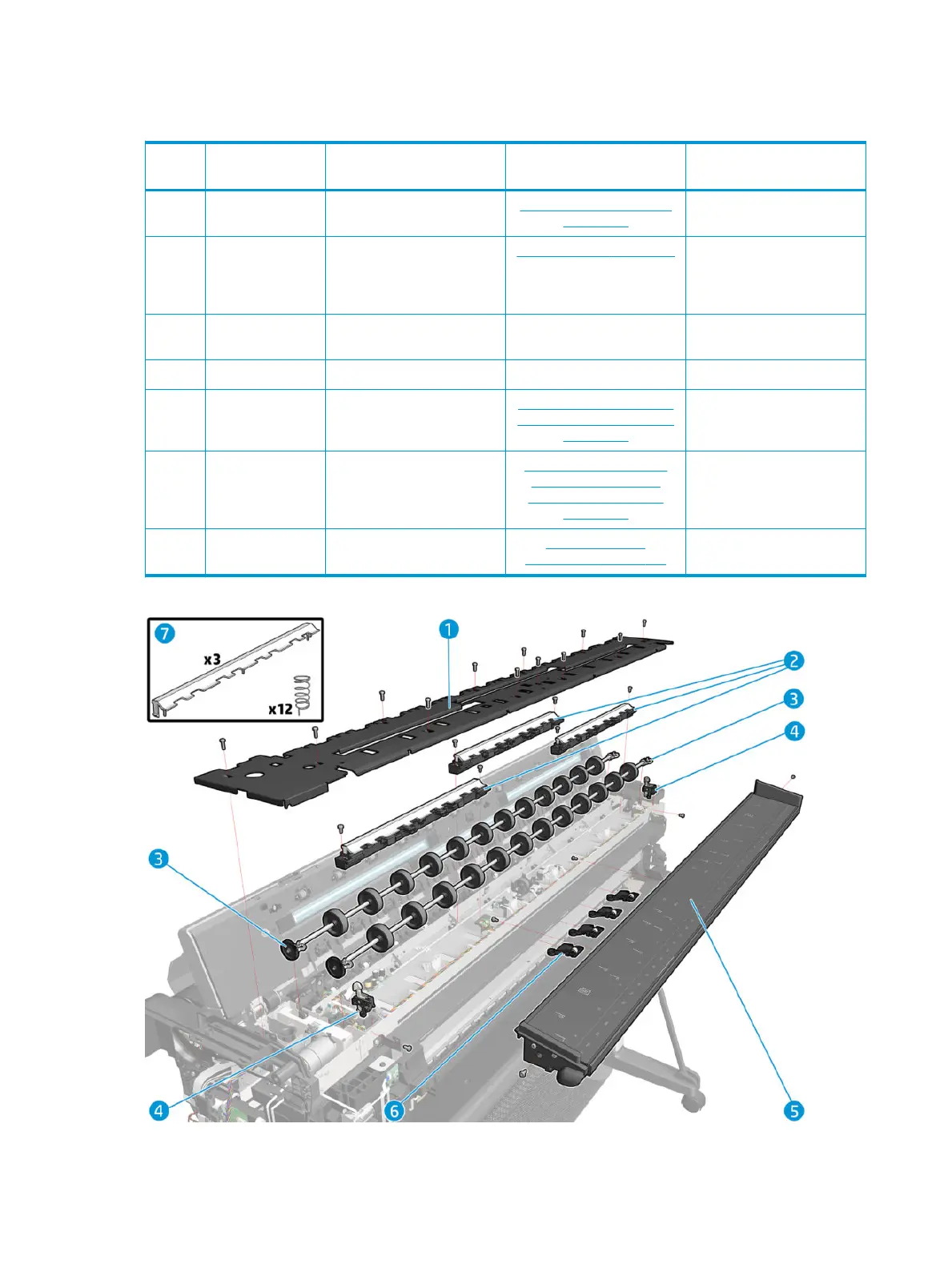

HP DesignJet T730

Scanner Bottom Mech
HP part number Part description Removal and installation
reference
Comments
1 F9A30-67042 Bottom platen SV (T830) Bottom Platen F9A30-67042
on page 431
2 F9A30-67026 Calibration slider SV kit (T830) Calibration Slider on page 487 There is a CSR SV kit for
calibration surface only:
"F9A30-67027 Calibration
surface CSR SV kit"
3 F9A30-67025 Scanner feed shaft SV kit
(T830)
SV kit contains only 1
feedshaft.
4 F9A30-67030 Assembly Latch SV kit (T830)
5 F9A30-67039 Input platen SV (T830) Input platen SV F9A30-67039
(HP DesignJet T830 MFP only)
on page 513
Includes L shape Torx tool.
6 F9A30-67033 Lower pinch assembly with
mirror S (T830)
Lower Pinch Assembly with
Mirror F9A30-67033 (HP
DesignJet T830 MFP only)
on page 492
SV kits only contains 1 pinch
assembly with mirror.
7 F9A30-67027 Calibration surface CSR SV kit Calibration Surface
F9A30-67027 on page 484
SV kit contains 3 calibration
surfaces and 12 springs.
