Scanner Module
Removal
1. Remove the Rear Cover, see Rear Cover (MFP only) on page 464.
2. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
3. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
4. Remove the Front Window, see Front Window MFP SV Kit F9A30-67013 on page 502.
5. Remove the Refeed Preventer, see Refeed Preventer on page 504.

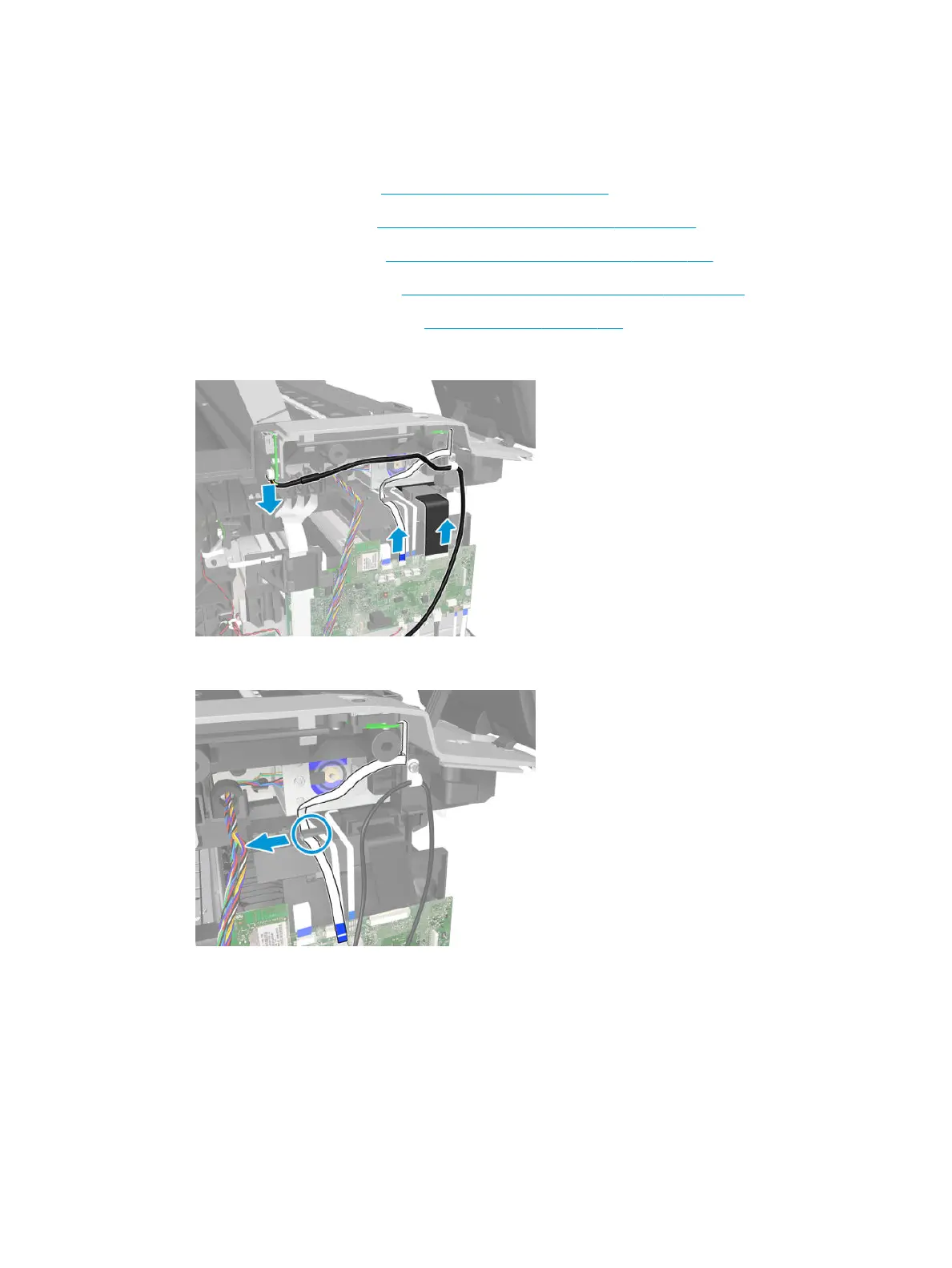

6. Disconnect the three cables.
7. Detach the FFC Power Button.
ENWW Scanner Module 505
