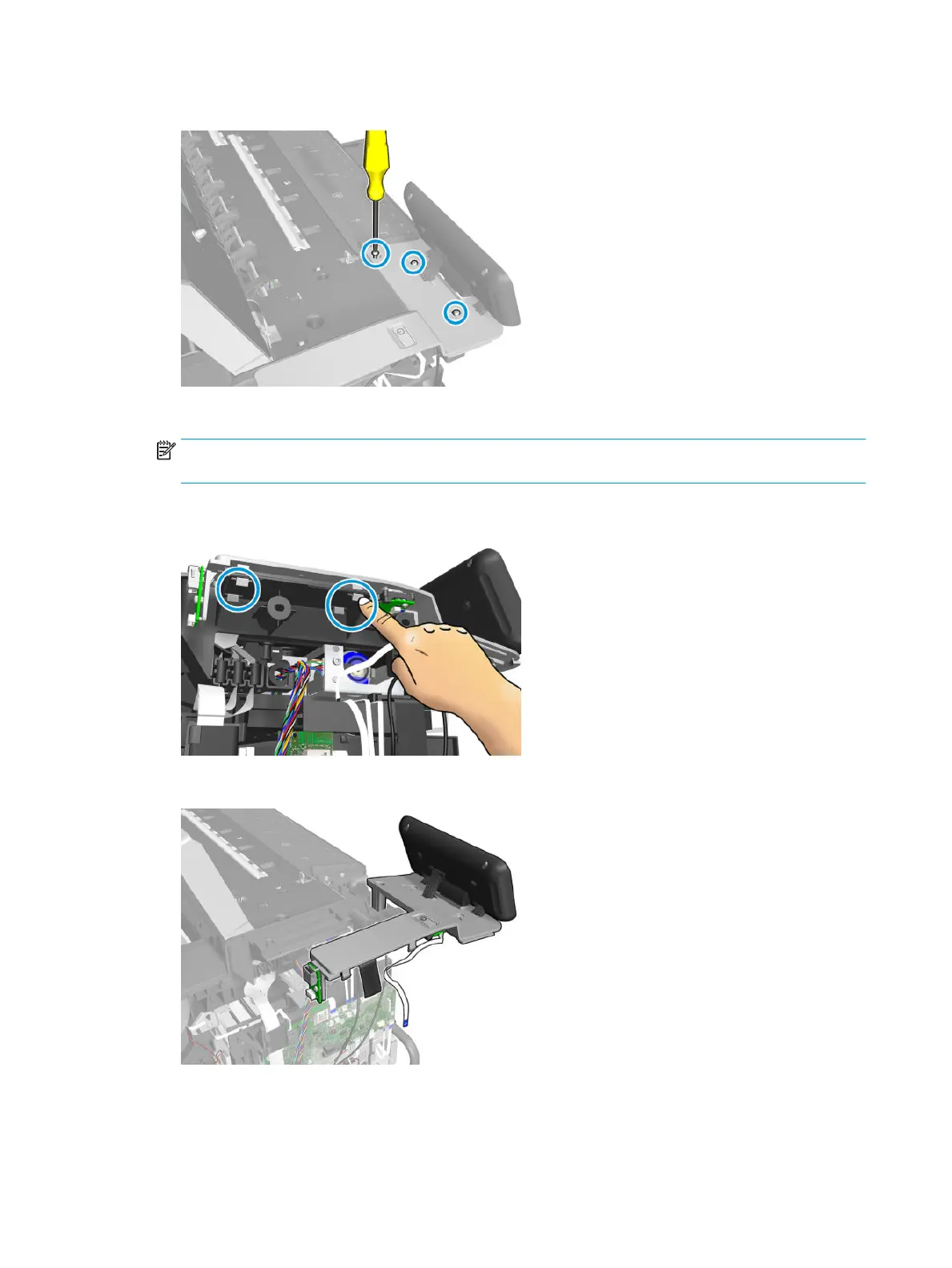

8. Remove the three screws.
9. Unclip the four clips.
NOTE: The Top Left Cover (where the front panel support clips are) can also be removed to reduce the
risk of scanner cable damage.
10. Leave the Front Panel in "parking" position.
506 Chapter 5 Removal and installation ENWW
