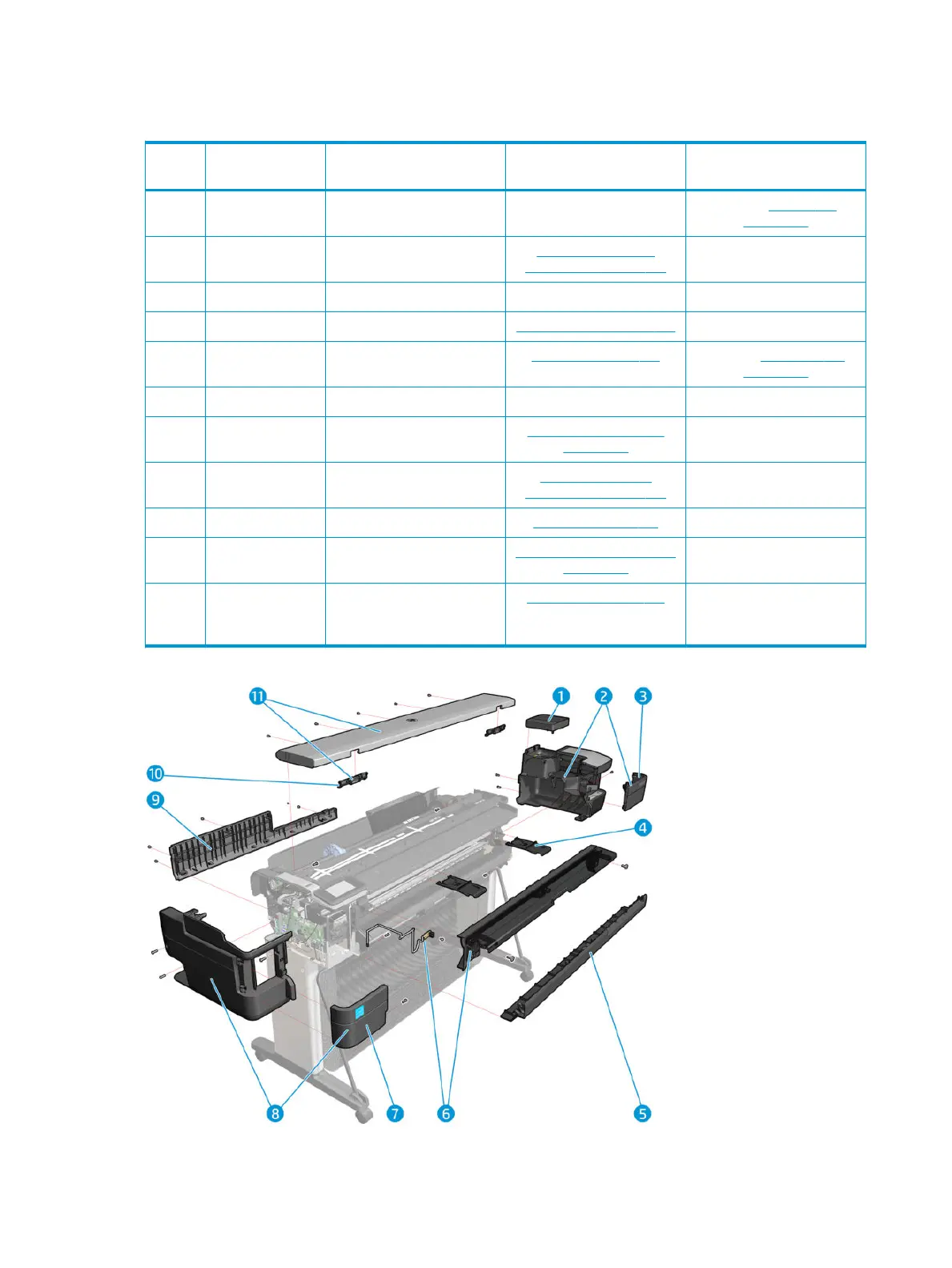

HP DesignJet T730

Covers HP DesignJet T830 MFP
HP part number Part description Removal and installation
reference
Comments
1 F9A30-67014 Ink door cover SV kit CSR A see Ink Door ier
on page 584
2 F9A30-67011 Right cover SFP SV kit Right Cover MFP SV Kit
F9A30-67011 on page 264
3 F9A30-67010 Assembly PH Door SV kit CSR A
4 F9A30-67035 Refeed preventers SV kit Refeed Preventer on page 504 CSR A
5 CQ894-67001 36 Front Cover SV Front Cover on page 261 CSR A see Front Cover ier
on page 569
6 F9A30-67013 Front frame window MFP SV kit
7 F9A30-67006 Assembly Cutter Door SV kit Cutter Door F9A30-67006
on page 378
CSR B: Need a at screwdriver
8 F9A30-67012 Left cover SFP SV kit Left Cover MFP SV Kit
F9A30-67012 on page 268
9 CQ893-67002 36 Back cover SV Back Cover on page 275
10 F9A30-67016 Top cover button latch MFP SV Top window SFP F9A29-67007
on page 258
Latches for scanner lid
11 F9A30-67015 Central covers SFP SV Central Cover on page 284 Scanner top cover. The kit also
contains F9A30-60224 Central
top cover (behind the scanner)
