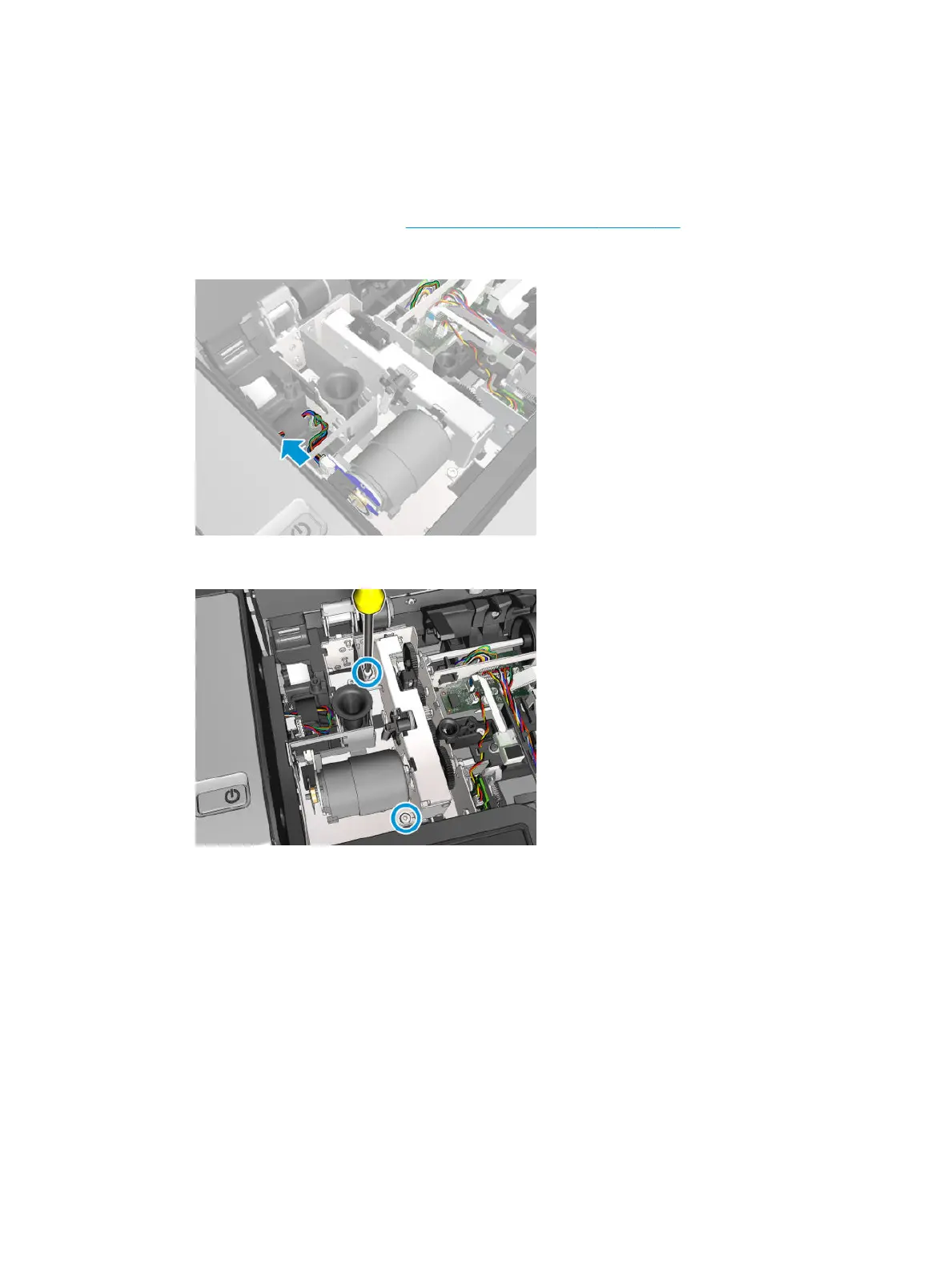

Scanner Feed Motor F9A30-67024
Removal
Tools: Screwdriver Torx 10
1. Remove the Bottom Platen, see Bottom Platen F9A30-67042 on page 431.
2. Disconnect the cable.
3. Remove the two screws.
ENWW Scanner Feed Motor F9A30-67024 435
