Bottom Cables F9A30-67034

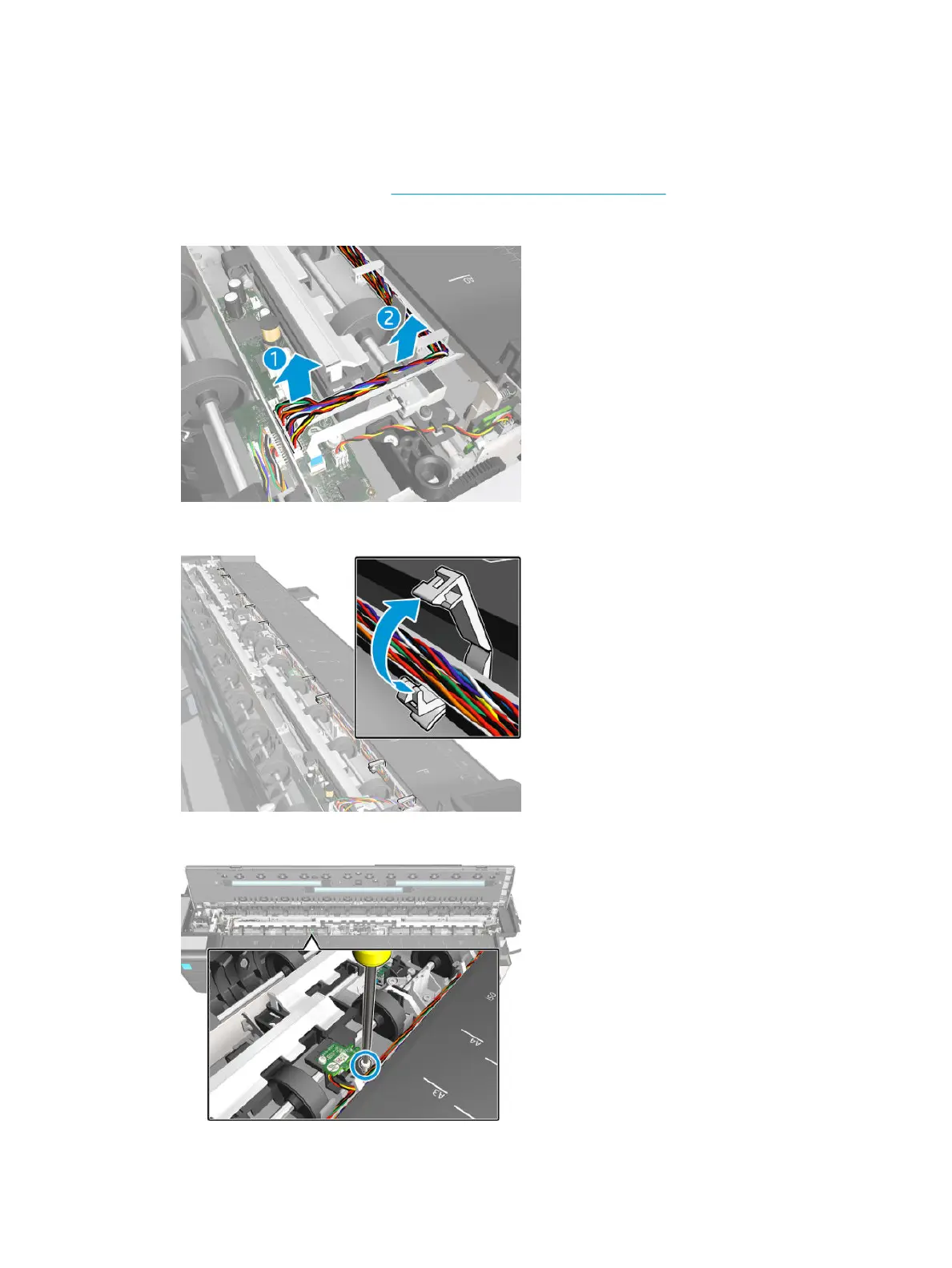

Removal
1. Remove the Bottom Platen, see Bottom Platen F9A30-67042 on page 431.
2. Disconnect the cable and detach it.
3. Open the ten wire-saddles.
4. Remove one screw from the Middle Lid Magnetic Sensor .
