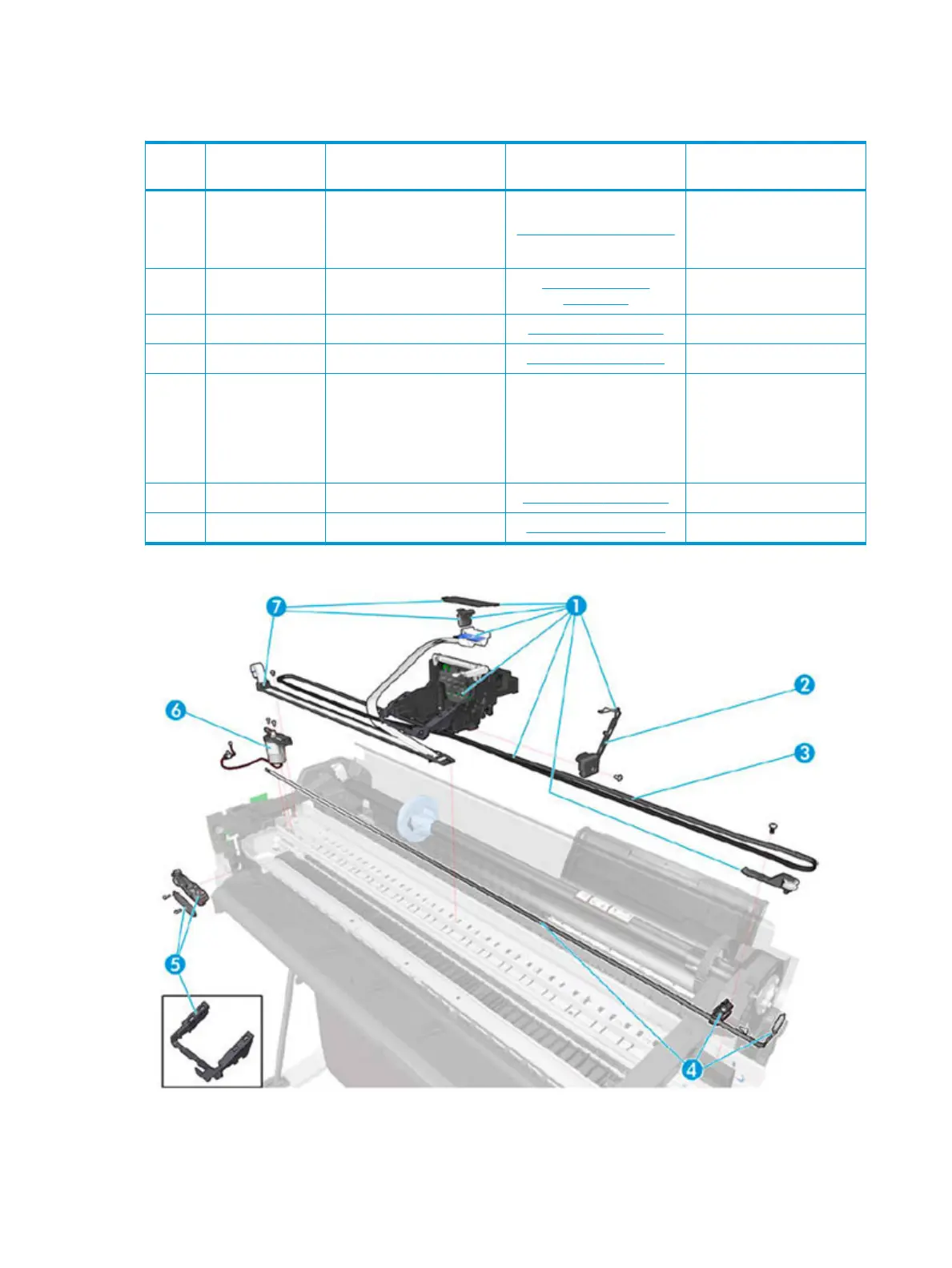

Carriage assembly
HP part number Part description Removal and installation
reference
Comments
1 F9A30-67061 Carriage Assembly Carriage and Belt on page 344
Includes carriage base, carriage
PCA and cover, Carriage Line
Sensor, extra Encoder Strip,
instruction ier, and gloves
2 CQ890-67001 Carriage Line Sensor (ZIM
Sensor)
Carriage Line Sensor
on page 402
3 CQ893-67016 Belt (36) Carriage Belt on page 351
4 CQ893-67029 36 Encoder strip SV Encoder Strip on page 300 Includes gloves
5 CQ890-67091 Cutter Y margin new Extract Li It includes cutter, extraction
lid, carriage bridge and
screwdriver. There is also a
Cutter CSR SV kit:
"CQ890-67090 Cutter CSR SV
kit"
6 F9A30-67063 Carriage Motor Carriage Motor on page 374
7 CQ893-67001 36 Trailing cable SV Trailing Cable on page 326
238 Chapter 4 Parts and diagrams ENWW
