Top Cover Sensor Cable
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Front Panel, see Front Panel SFP F9A29-67008 on page 278.
6. Remove the Top Cover Sensor, see Top Cover Sensor SFP on page 473.

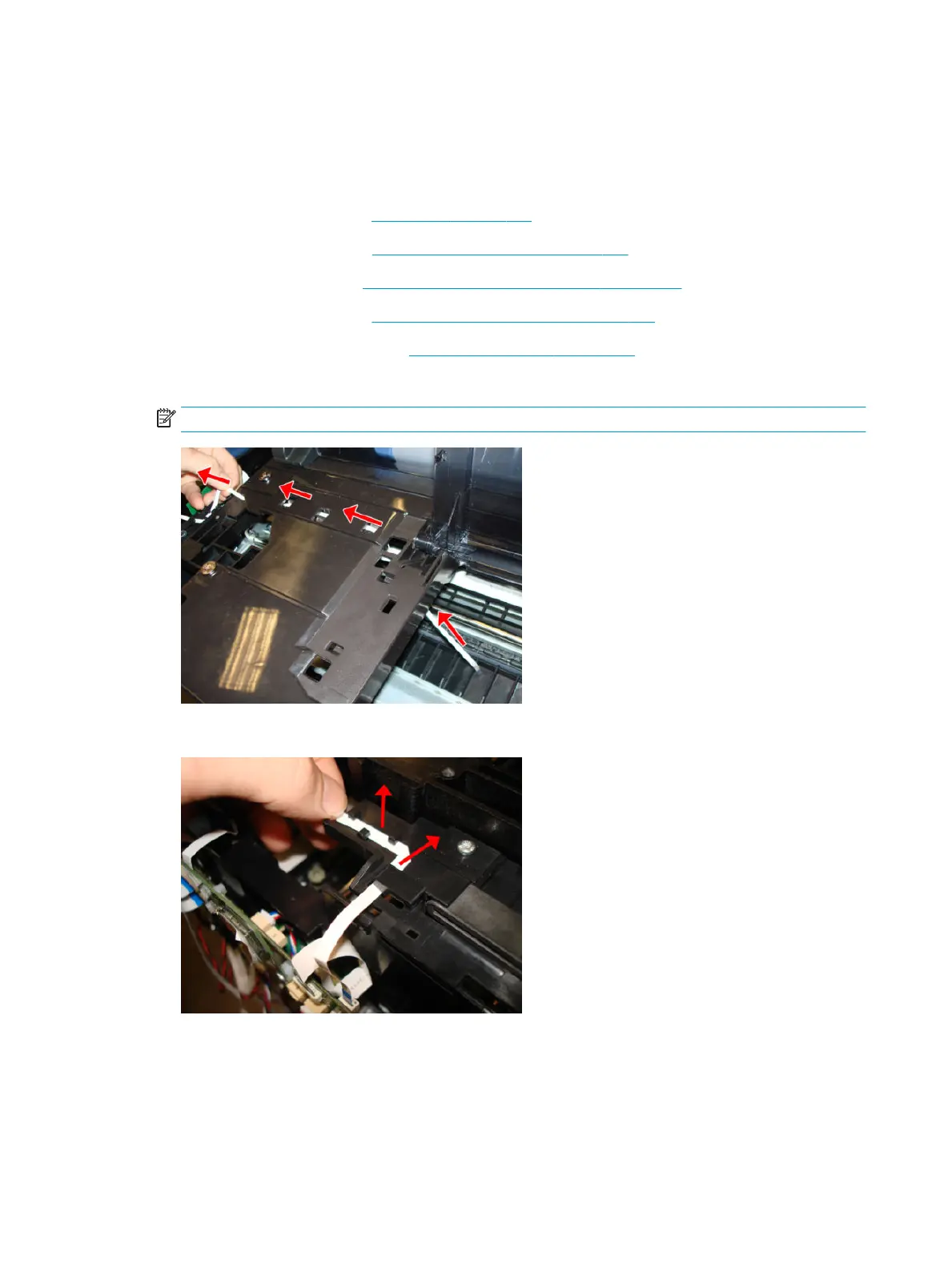

7. Unroute the at cable.
NOTE: Image shown is from another product, and for reference only.
8. Unclip the at cable.
476 Chapter 5 Removal and installation ENWW
