Bundle Board FFC cable
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
6. Remove the Back Cover, see Back Cover on page 275.

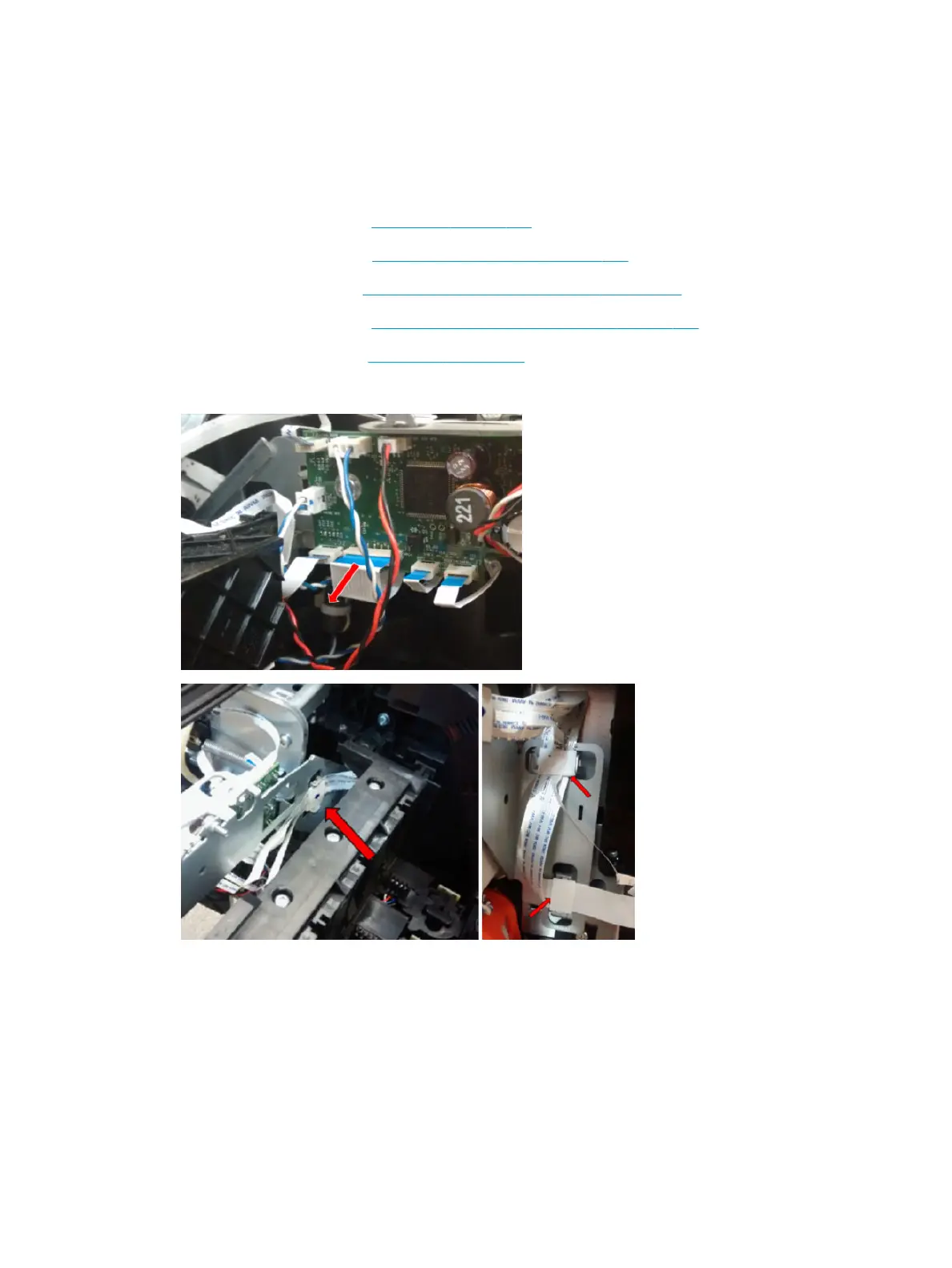

7. Disconnect the FFC cable from the Bundle Board.
