Right Roll Support
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
6. Remove the Back Cover, see Back Cover on page 275.
7. Remove the Spindle.
8. Remove the Roll Cover, see Roll Cover on page 272.
9. Remove the Upper-Roll Paper Guide, see Upper-Roll Paper Guide on page 289.
NOTE: There are two brackets for the back cover that are screwed onto the Multi-Sheet Tray, these do
not need to be removed.

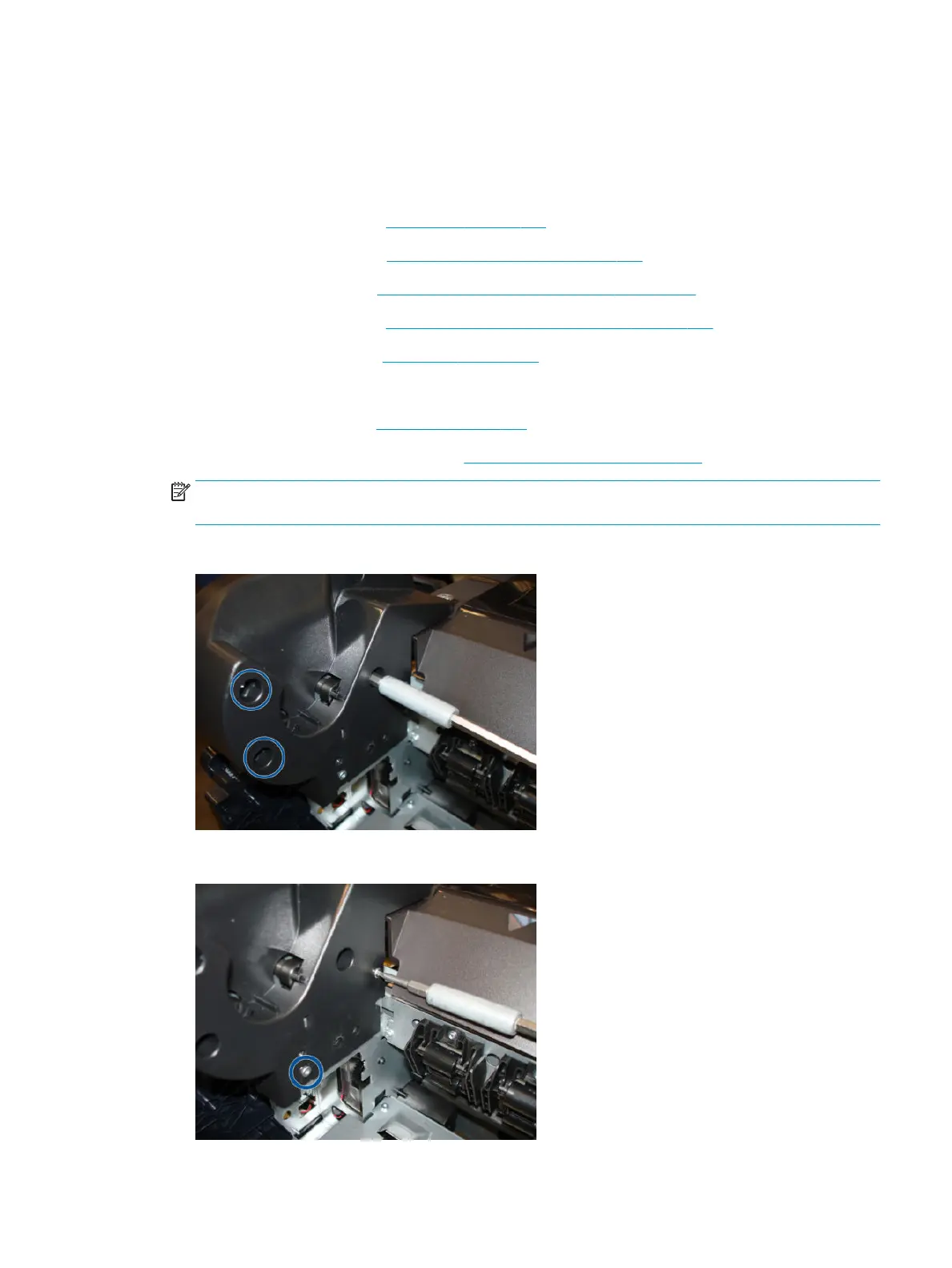

10. Remove three T-15 screws.
11. Remove two T-10 screws.
ENWW Right Roll Support 297
