Carriage Motor
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Front Panel, see Front Panel SFP F9A29-67008 on page 278.
6. Remove the Power Supply, see Power Supply on page 308.

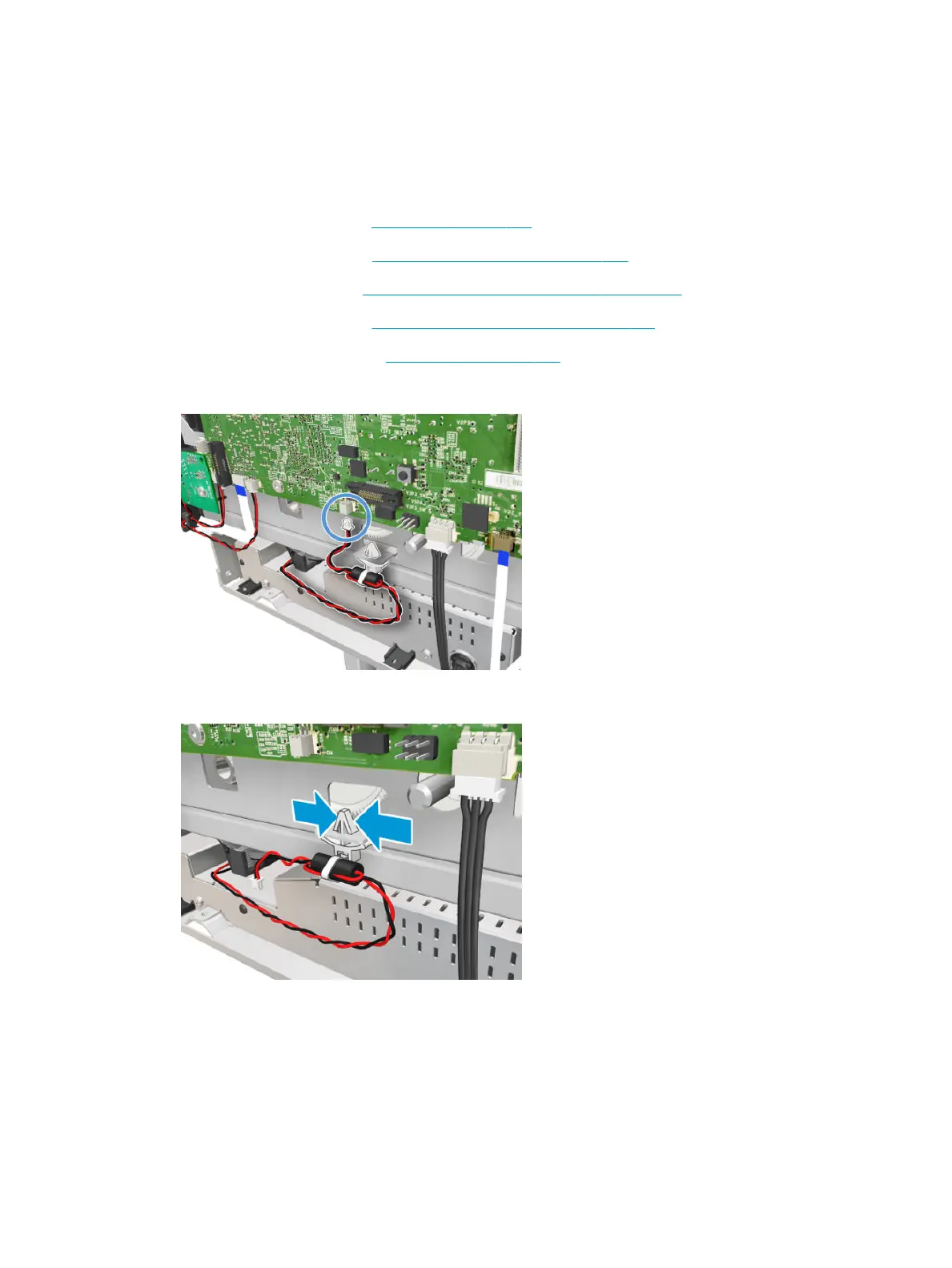

7. Disconnect the Carriage Motor Cable.
8. Unclip it from the holder in the chassis.
