Sensor SV Kit F9A30-67031
The Sensor SV Kit contains all optical sensors in the scanner. The removal and assembly for each sensor is
described in the following pages, although it is likely that only one of them be replaced at a time.
Lid Magnetic Sensor F9A30-60034
Removal

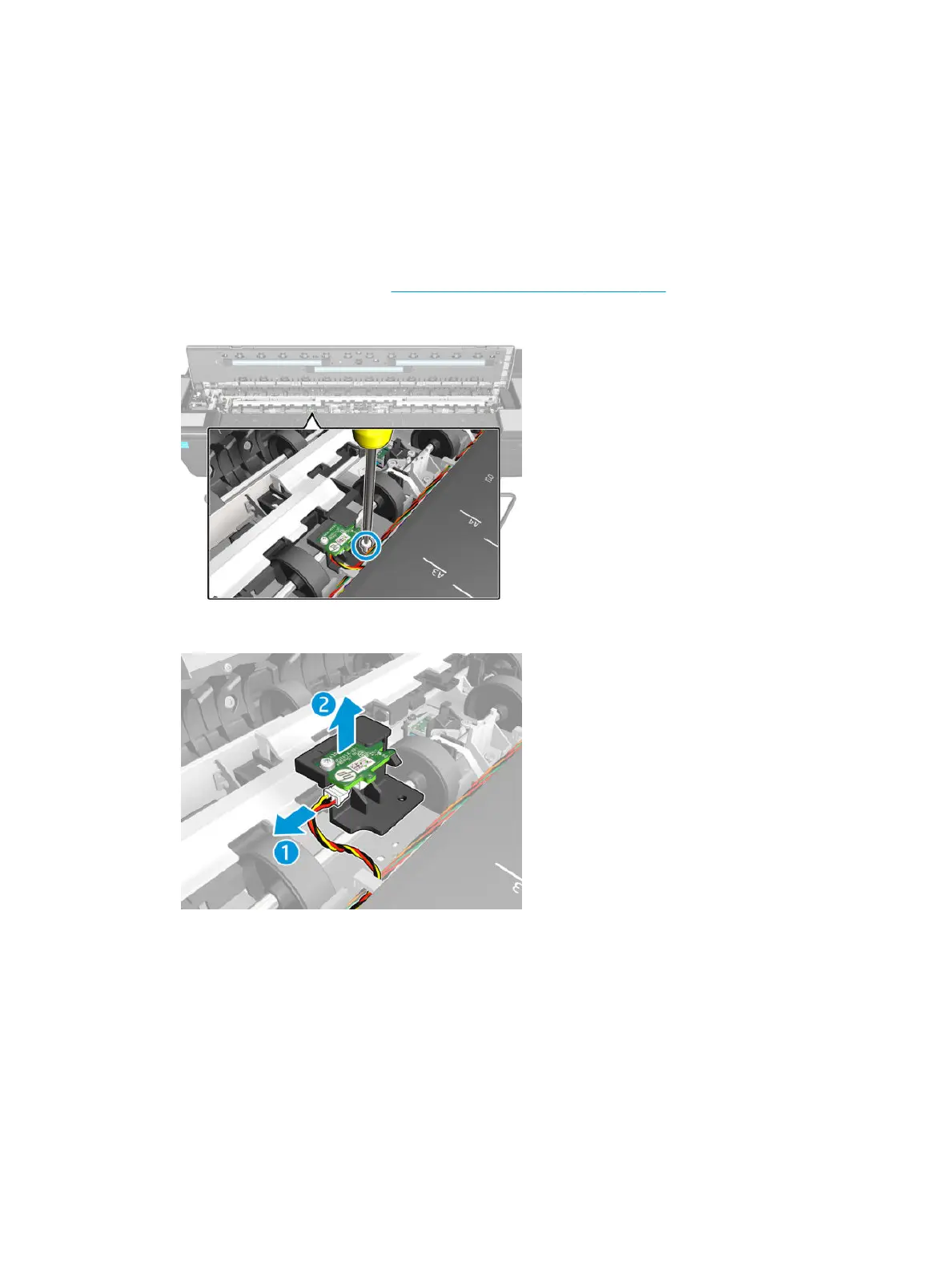

1. Remove the Bottom Platen, see Bottom Platen F9A30-67042 on page 431.
2. Remove one screw from the Lid Magnetic Sensor.
3. Disconnect and detach the cable from the Lid Magnetic Sensor. Remove it.
Installation
▲
Install by reversing the removal process.
