Roll Cover
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
4. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
5. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
6. Close the Roll Cover.

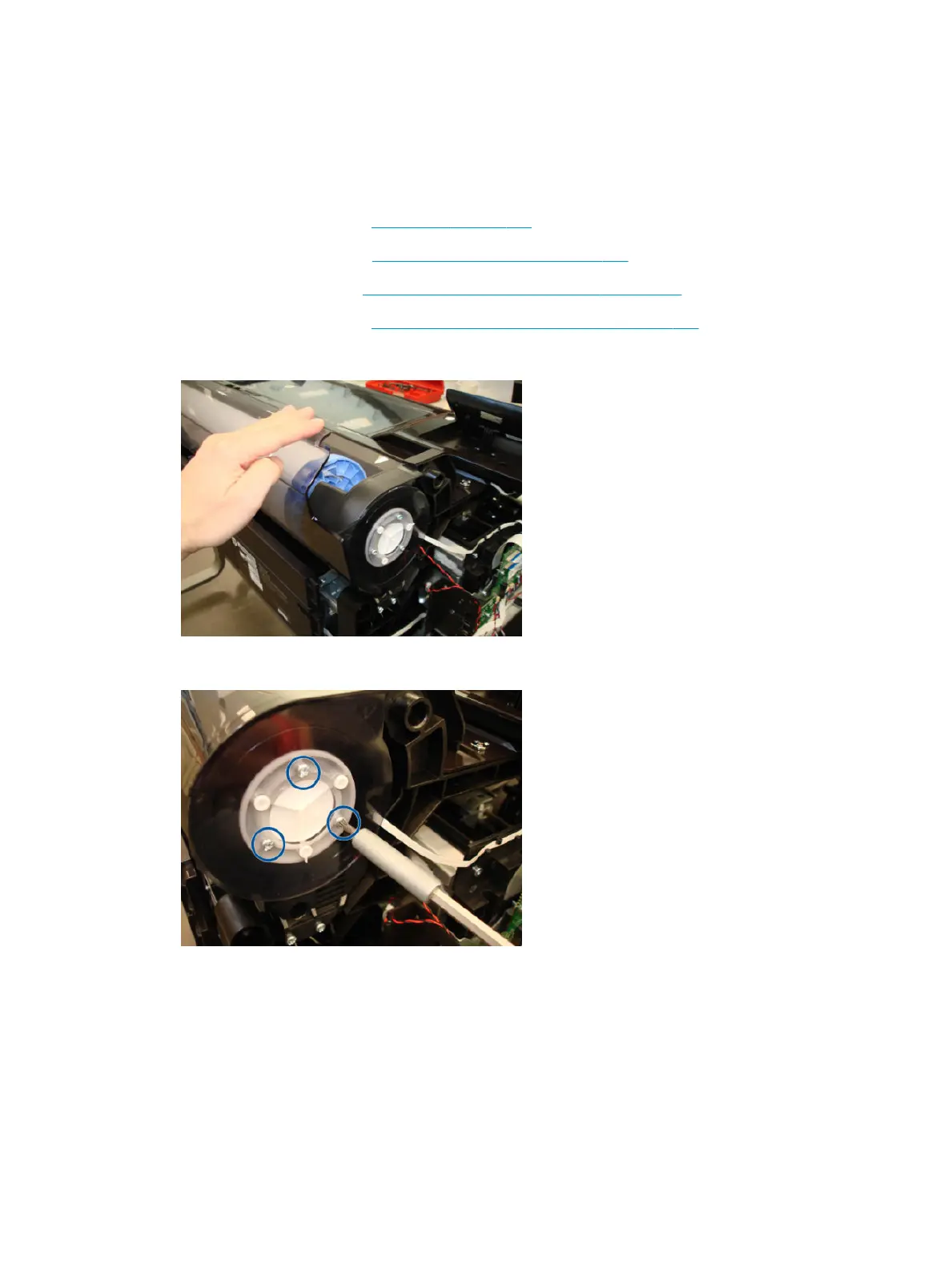

7. Remove three T-15 screws from the left side of the Roll Cover.
272 Chapter 5 Removal and installation ENWW
