Encoder Strip
Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
NOTE: MFP only: Scanner removal is recommended before proceeding further. See Scanner Module
on page 505.

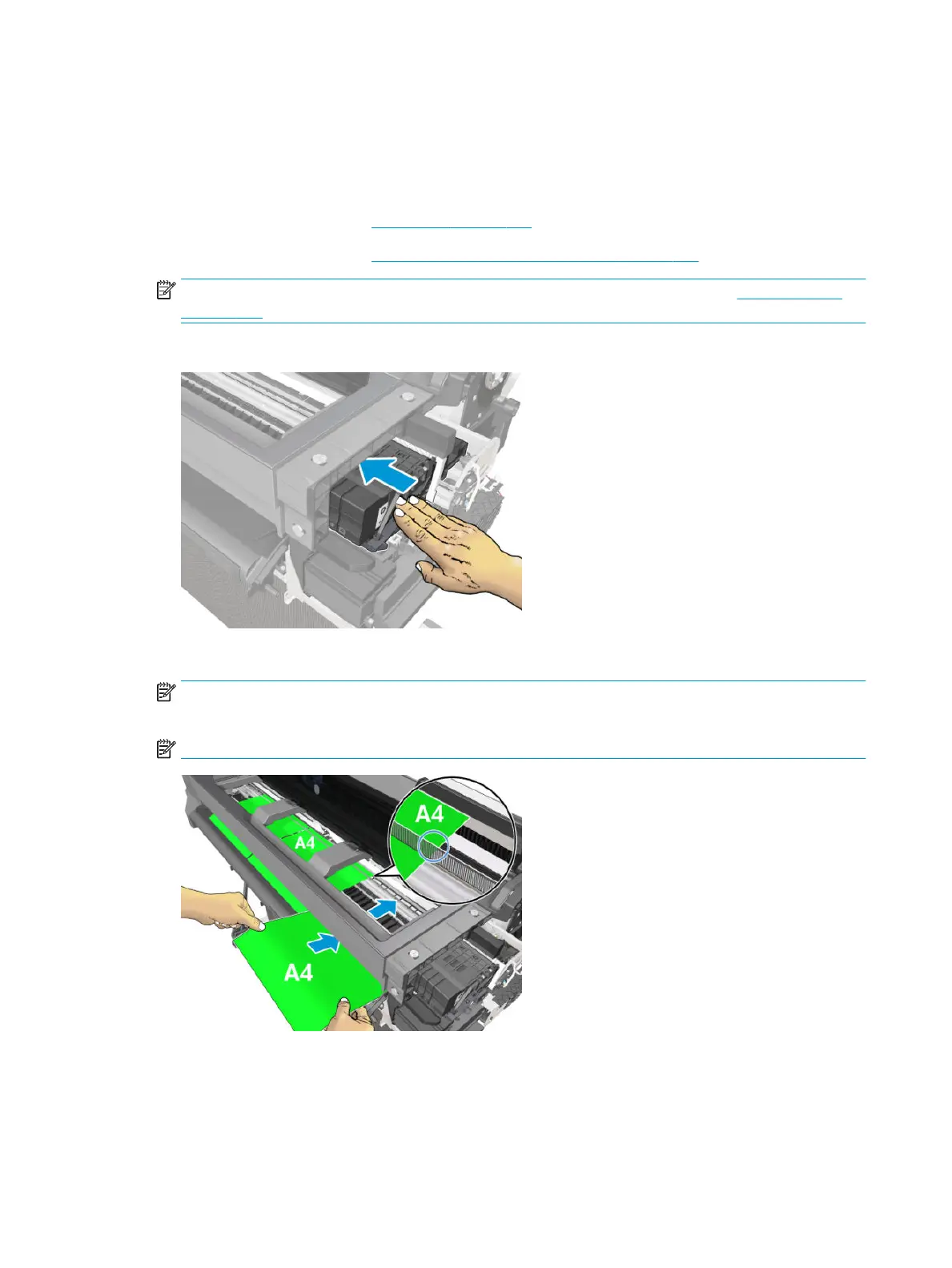

4. Uncap the Carriage and move it to the left.
5. Insert some paper (of any type) to prevent grease or dirt from falling into the printer.
NOTE: When working in this area, in which dirt and grease can contaminate other parts of the printer,
we recommend wearing gloves.
NOTE: Image shown is from another product, and for reference only.
300 Chapter 5 Removal and installation ENWW
