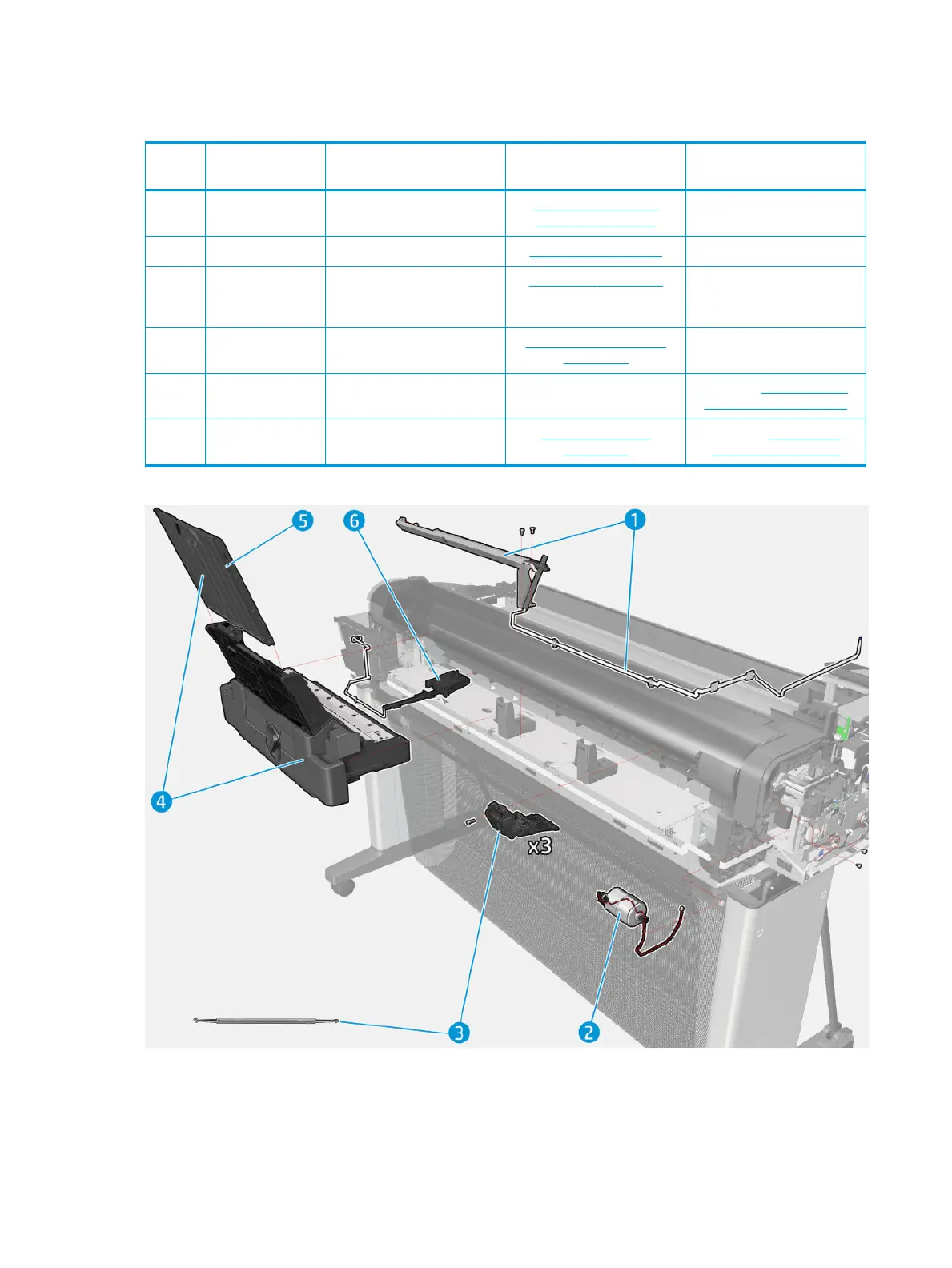

Paper path (rear)
HP part number Part description Removal and installation
reference
Comments
1 F9A30-67009 Assembly Multi-sheet tray SV
kit
Multi-Sheet Tray Sensor
Assembly on page 385
2 F9A30-67049 Paper Motor SV kit Paper Motor on page 317
3 CQ890-67060 Pinches Assembly SV Pinchwheels on page 414 Includes 3 pinchwheels, a tool
to remove and mount them,
and an instruction ier
4 CQ890-67007 Accessory Tray SV Multi-Sheet Tray Assembly
on page 367
CSR A
5 CQ890-67047 Extension in the accessory CSR A; see Multi-Sheet Tray
Extension ier on page 570
6 F9A30-67053 OOPS Sensor ag w/tap Out-Of-Paper Sensor
on page 388
CSR B; see Out-Of-Paper
Sensor ier on page 572
240 Chapter 4 Parts and diagrams ENWW
