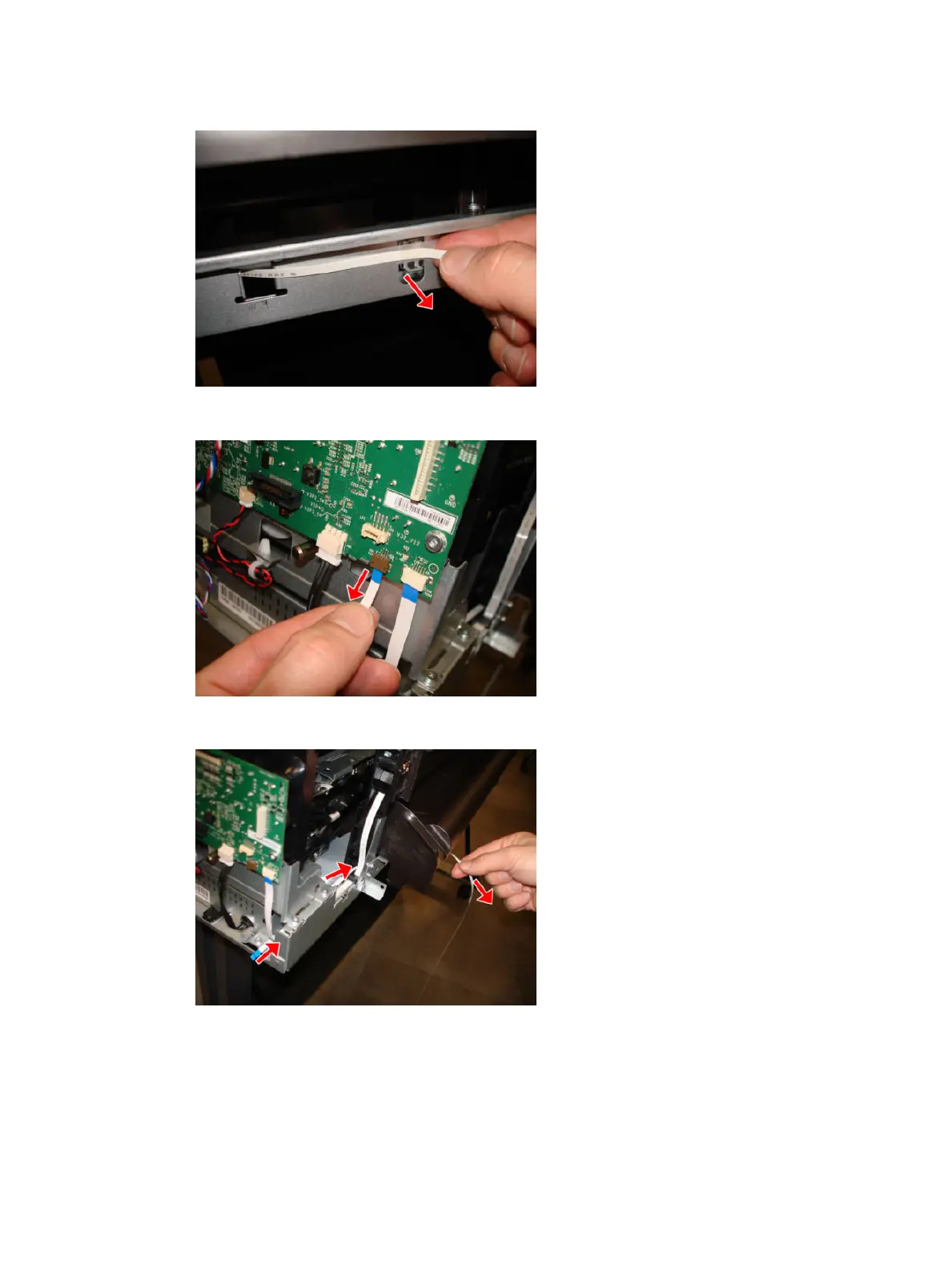

7. Unclip the locator FFC from the left of the Front Cross Beam.
8. Disconnect the Output Tray Extender Sensor Cable from the Main PCA.
9. Unroute the at cable carefully.
ENWW Output Tray Extender Sensor Cable 399
