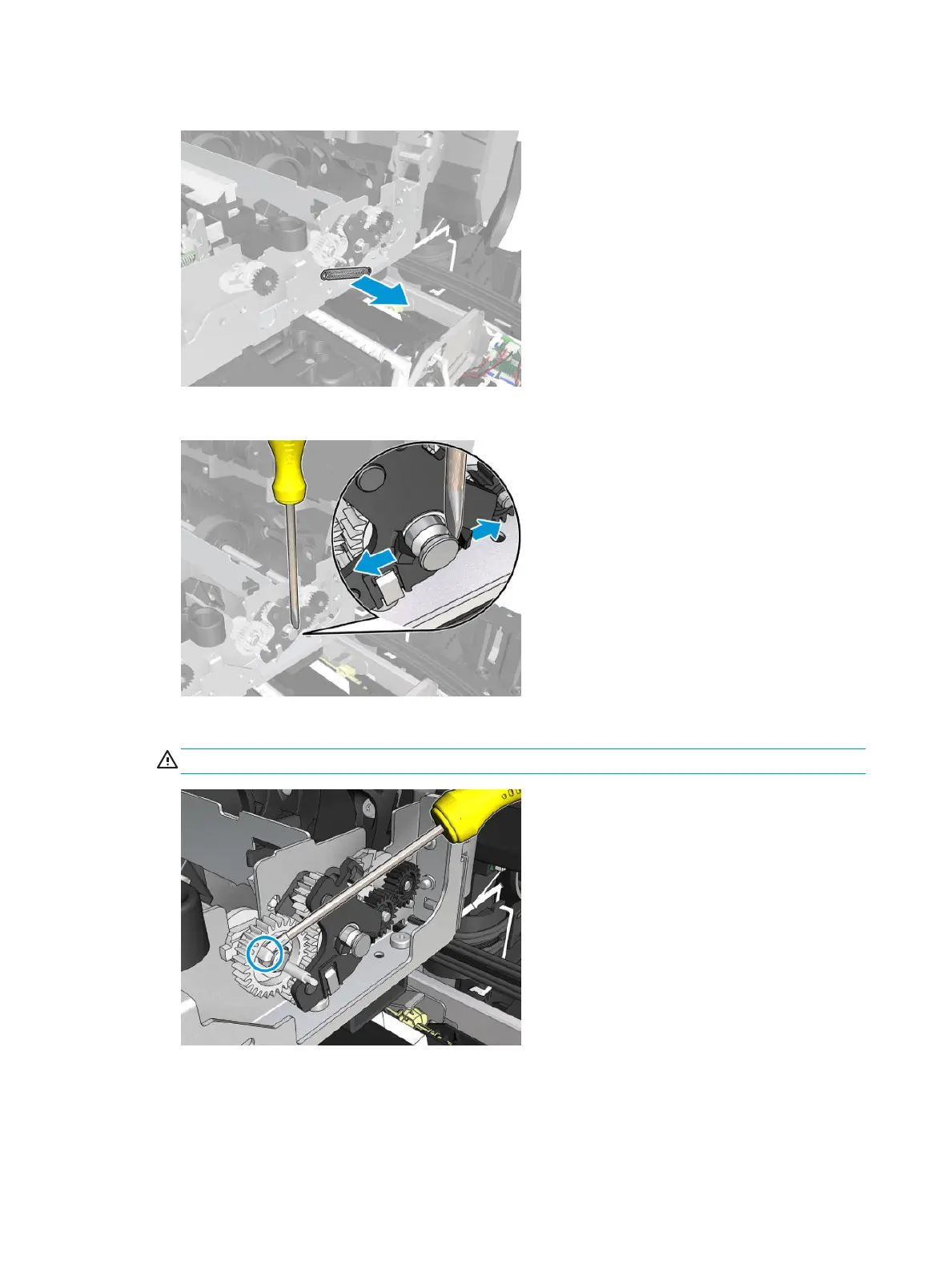

6. Remove the Spring gear slider.
7. Cut the two gear train clips.
8. Carefully detach the gear.
CAUTION: Take special care not to break it.
490 Chapter 5 Removal and installation ENWW
