Installation

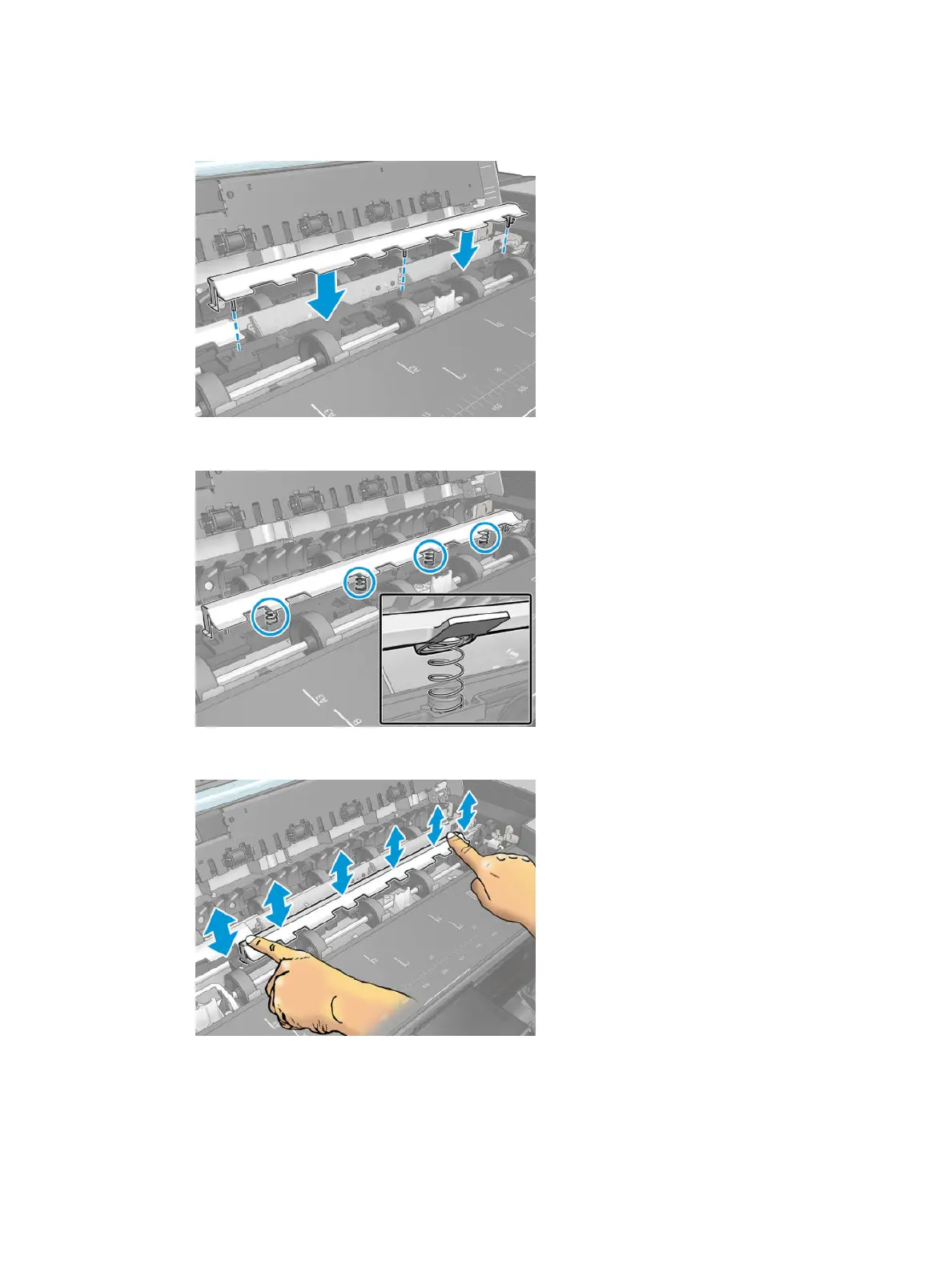

1. Insert the 3 Calibration Surface pins in their holes.
2. Be sure the 4 springs are correctly positioned.
3. Check the Calibration Surface works properly.
4. Calibration surface replacement checklist:
a. Replace all 3 calibration surfaces.
b. Clean the scanbars.
ENWW Calibration Surface F9A30-67027 485
