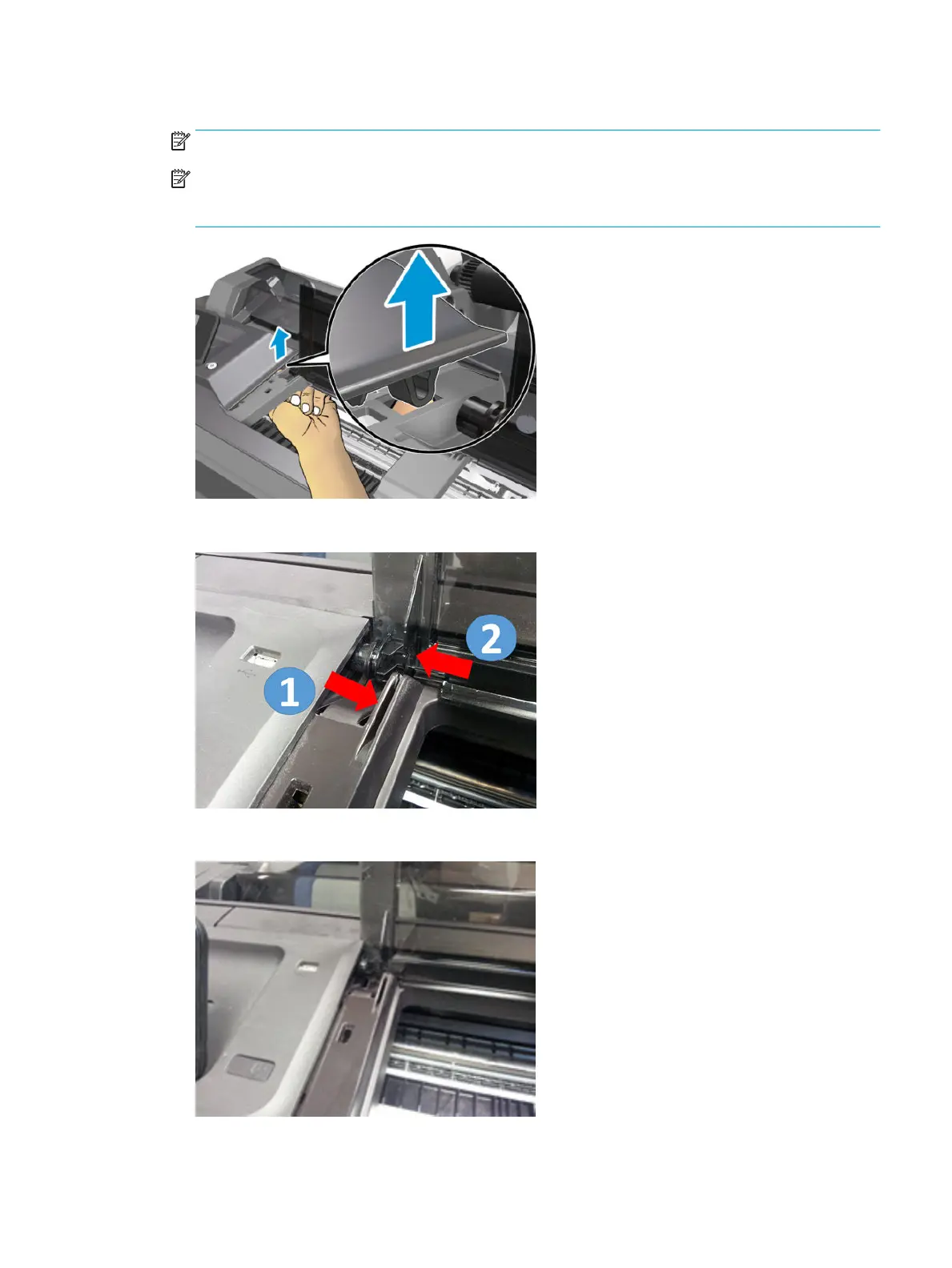

3. Push up the clip as shown below.
NOTE: Image shown is from another product, and for reference only.
NOTE: Do not force too much pushing the clip up as the Front Panel movement might be limited by the
USB cable. The purpose of pushing the clip up is only to create space in order to slide the window to the
left (not to fully remove the Front Panel).
4. Press down the ange of the Top Cover in order to slide the Window to the left.
5. Make sure you have slid the Top Window as far as possible to the left.
ENWW Top window SFP F9A29-67007 259
