HP DesignJet T730

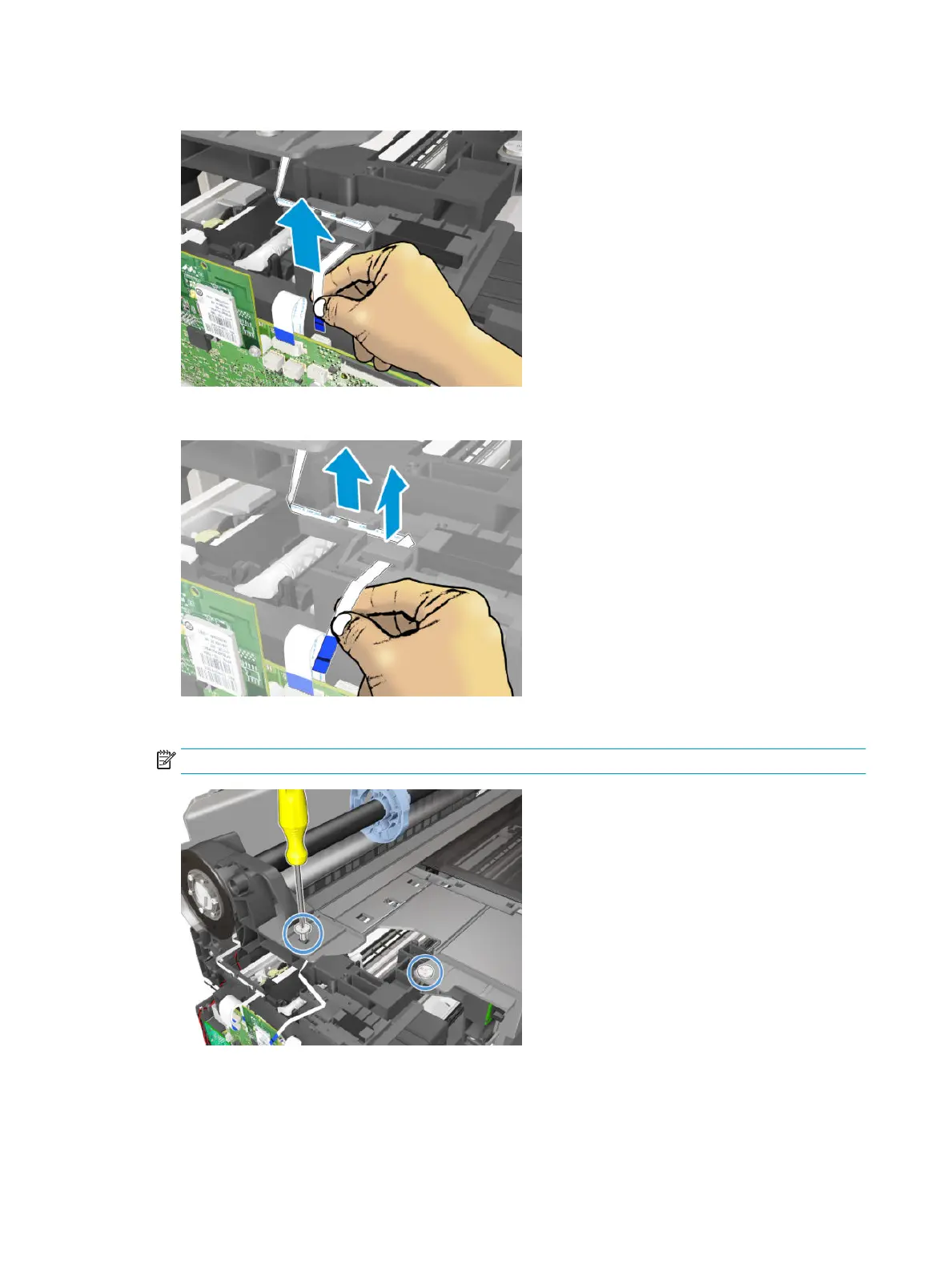

10. Ensure that the at cable shown here is disconnected.
11. Unroute the at cable.
12. Remove two T-15 screws from the left side.
NOTE: Image shown is from another product, and for reference only.
286 Chapter 5 Removal and installation ENWW
