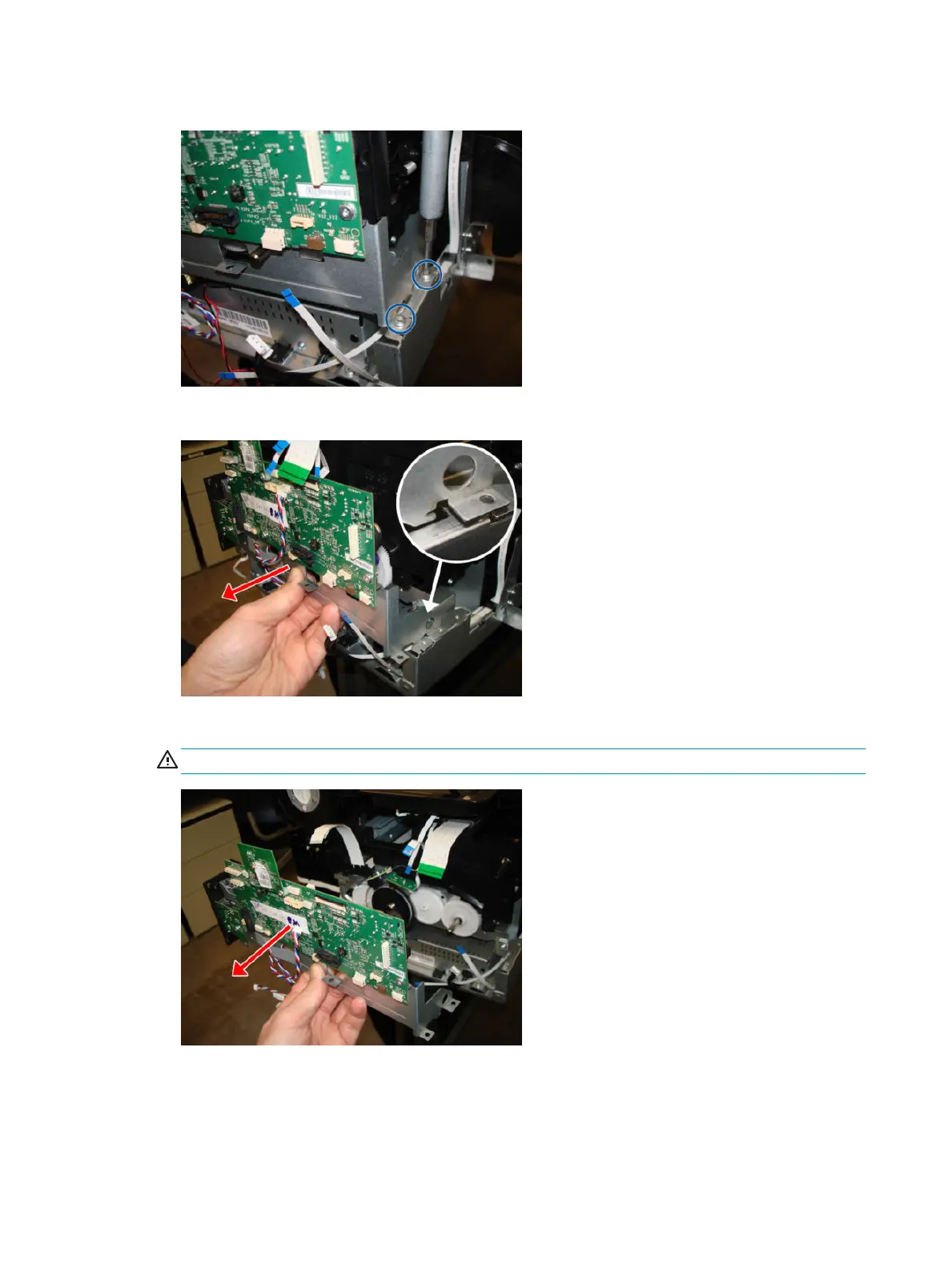

12. Remove two T-10 screws.
13. Slide out the Main PCA horizontally to disengage it from the hook.
14. Remove the Main PCA.
CAUTION: The Main PCA will come out of the printer together with the attached metal bracket.
Installation
1. When mounting the Main PCA, remember to insert it in the hook.
314 Chapter 5 Removal and installation ENWW
