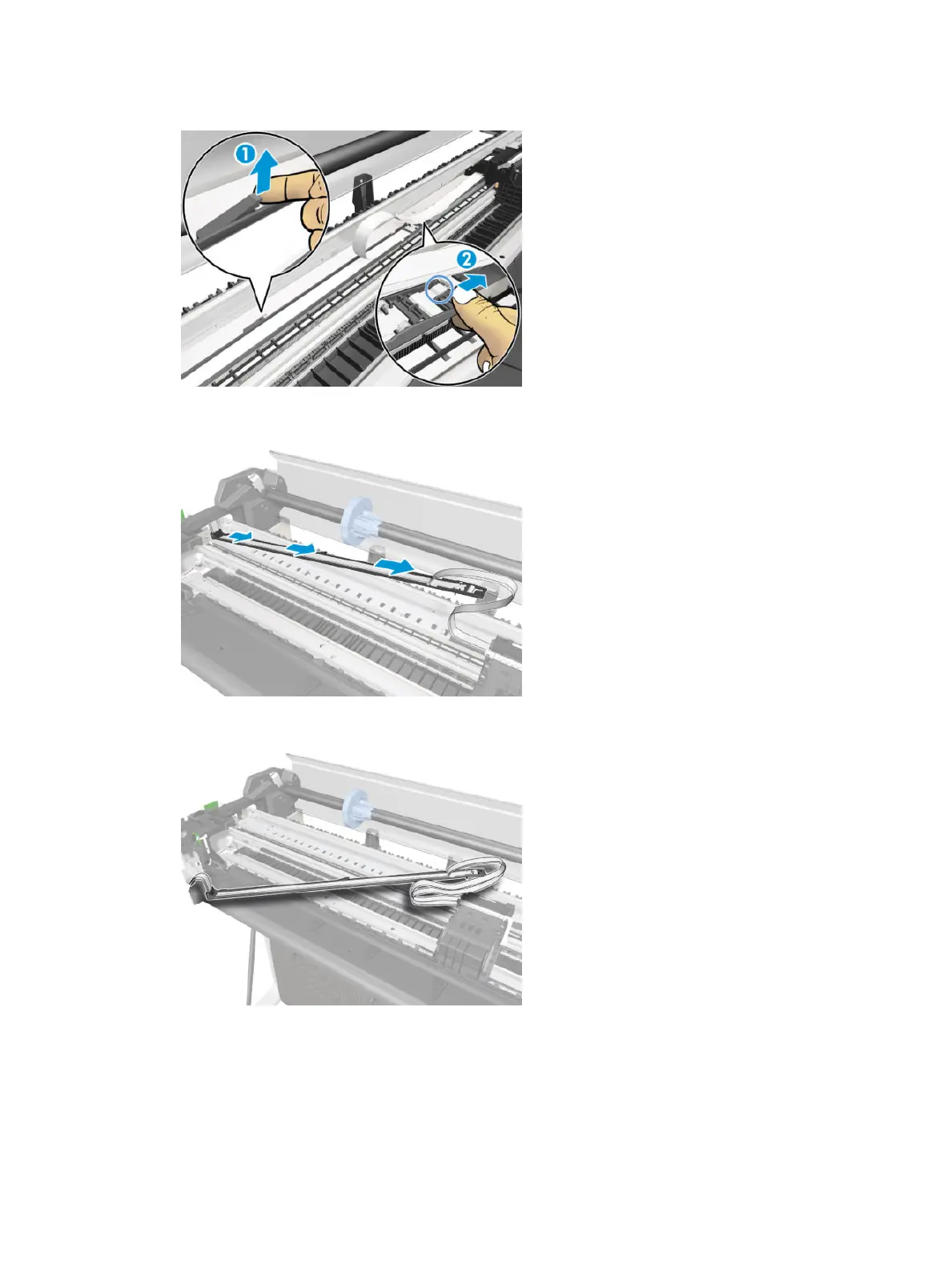

15. Detach the ex retainer assembly from the backbone.
16. Slide the ex retainer with the trailing cable to the right. Be careful not to damage the trailing cable.
17. Leave the ex retainer with the trailing cable in the position shown below.
416 Chapter 5 Removal and installation ENWW
