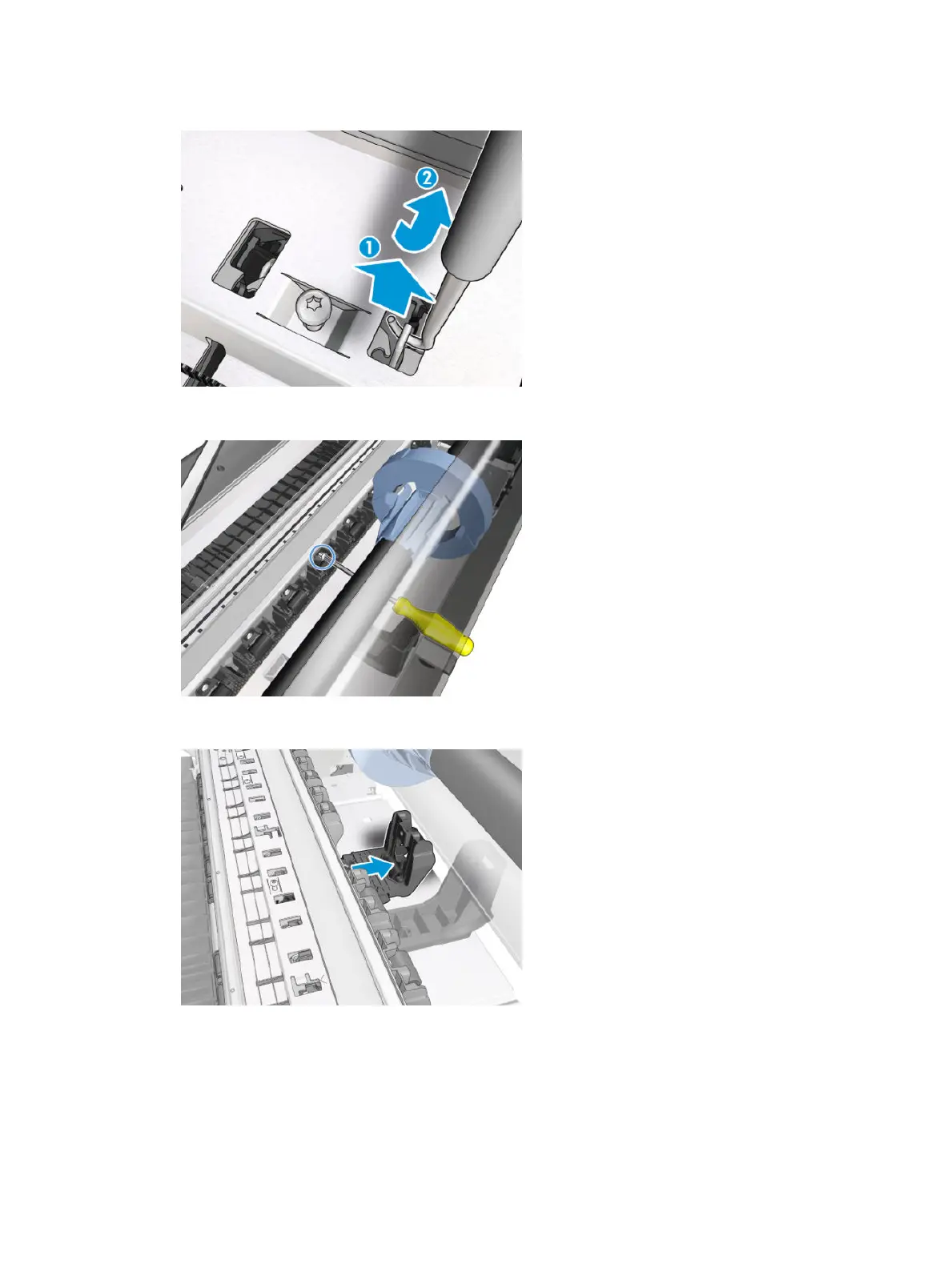

21. Detach the right end of the Pinchwheels.
22. Remove one T-10 screw.
23. Remove the Pinchwheels.
Installation
1. Make sure that the new Pinchwheels are properly aligned (1). Then tighten the screw (2).
418 Chapter 5 Removal and installation ENWW
