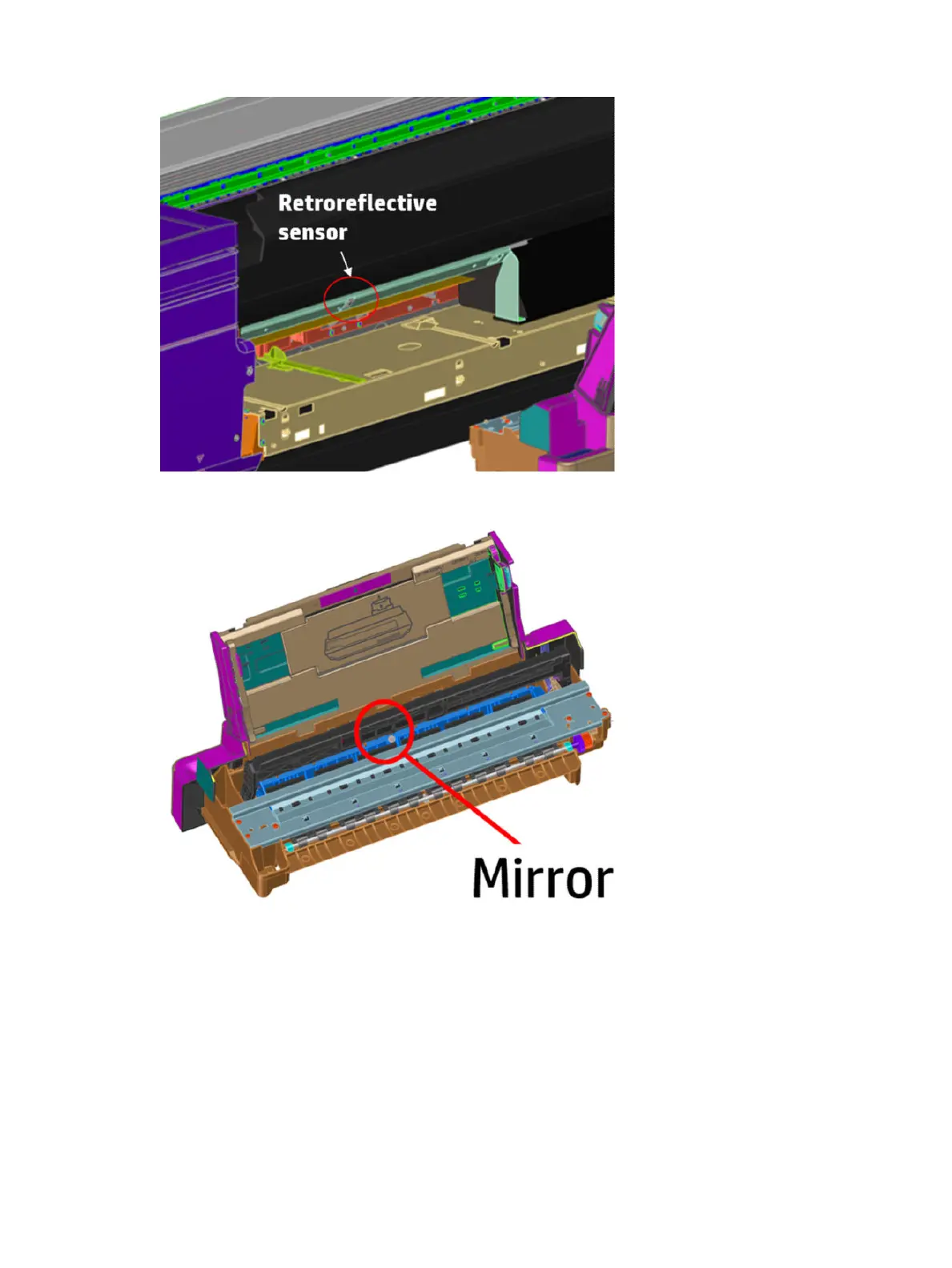

There is also a small mirror, located behind the media on the Multi-sheet Tray separator plate. This
arrangement of sensor and mirror is capable of detecting three states:
1. When the Multi-sheet Tray is installed but media is not present, the light from the Optical sensor hits the
mirror, and almost all of it bounces back to the sensor, resulting in a large signal.
