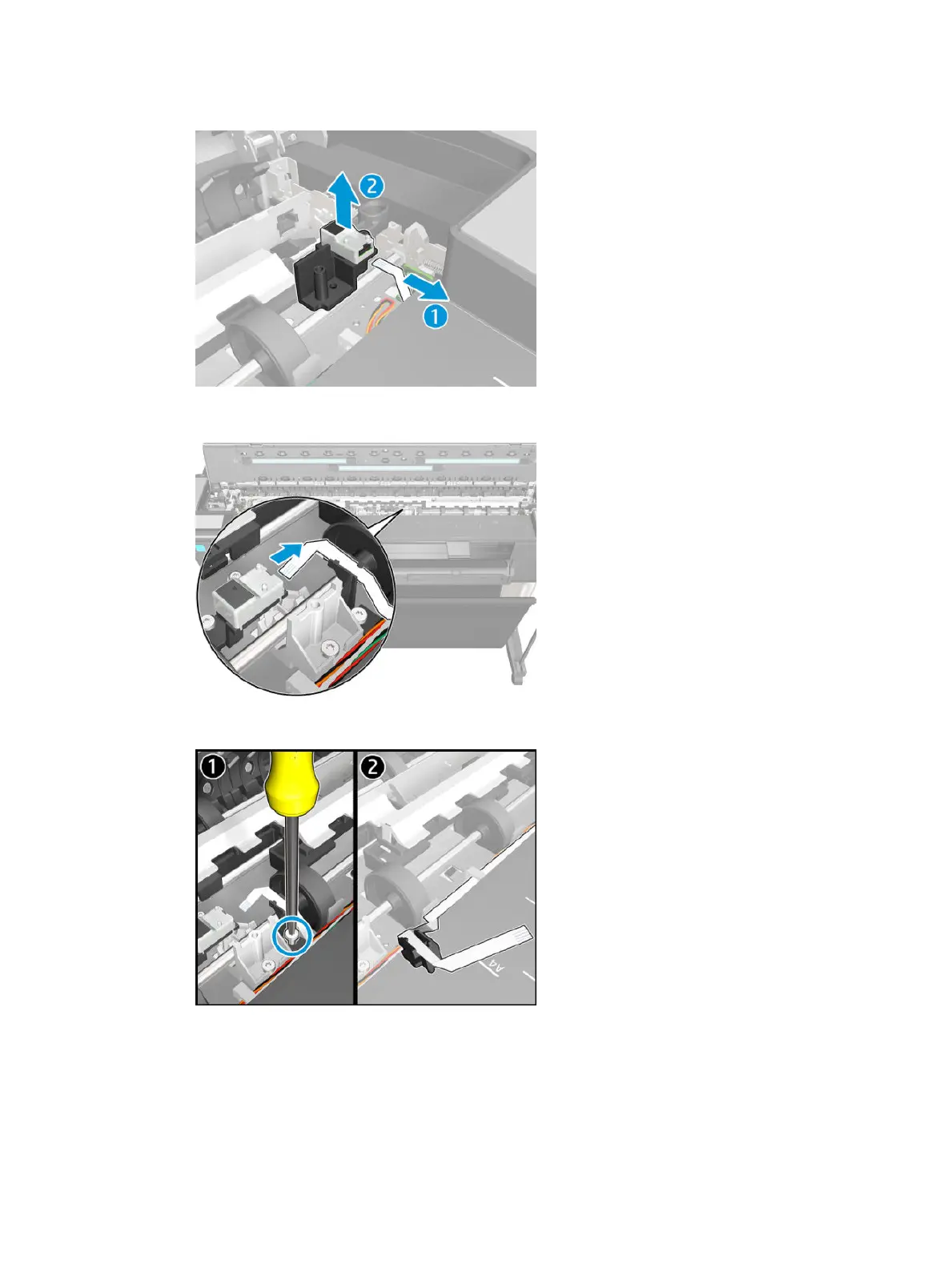

4. Disconnect the FFC cable from the Optical sensor and remove the sensor.
5. Disconnect the FFC cable from the TOF Optical sensor.
6. Remove one screw from the TOF Optical sensor support. Leave it on the input platen.
ENWW Scanner Feedshaft (Front) F9A30-67025 441
