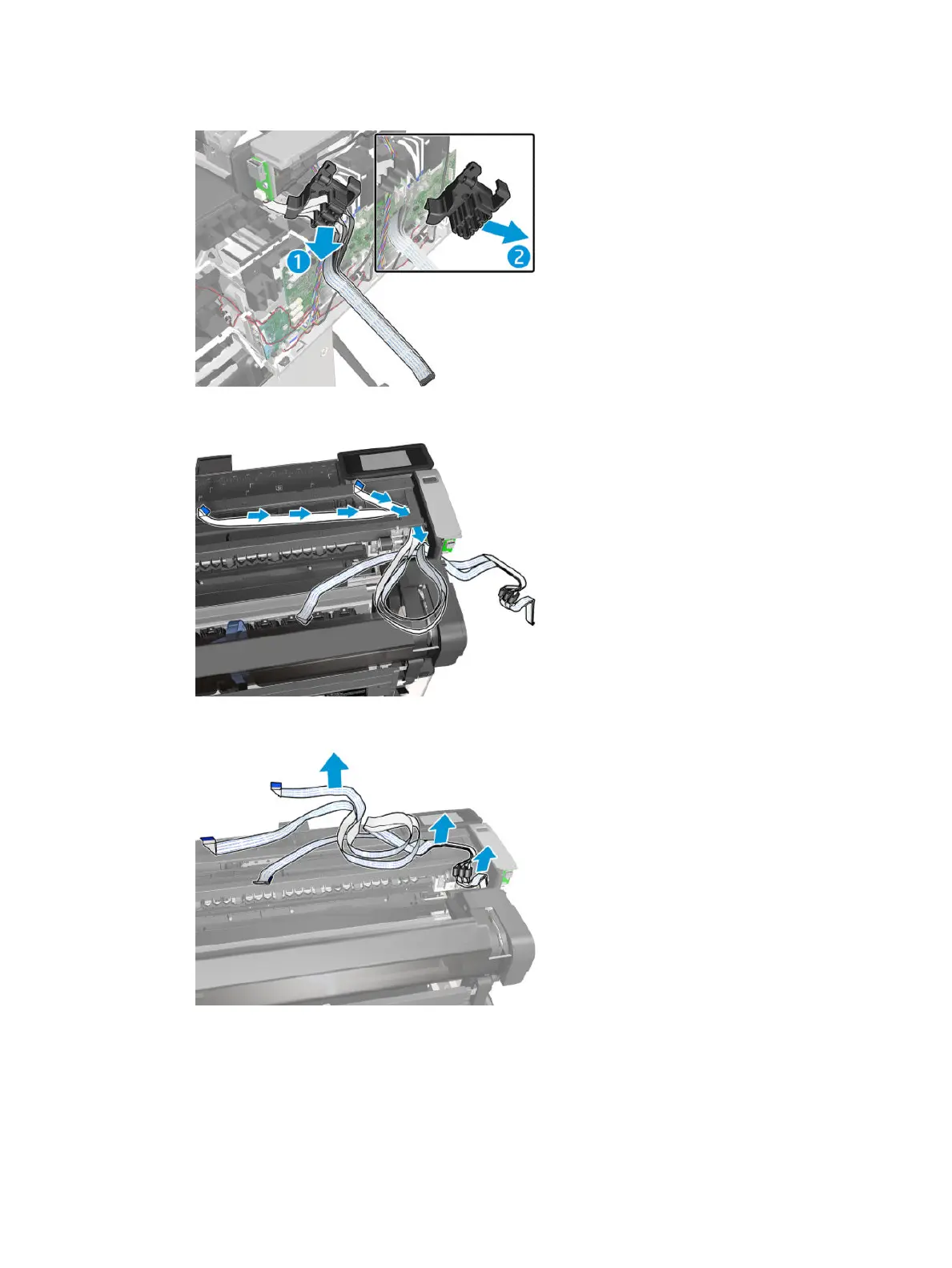

19. Remove the three ferrites and cables from the bracket.
20. Gently pass the three FFC Cables through the hole.
21. Remove the scanbar FFC.
Installation
1. Install the Scanbar FFC by reversing the removal process.
ENWW Scanbar FFC F9A30-67018 471
