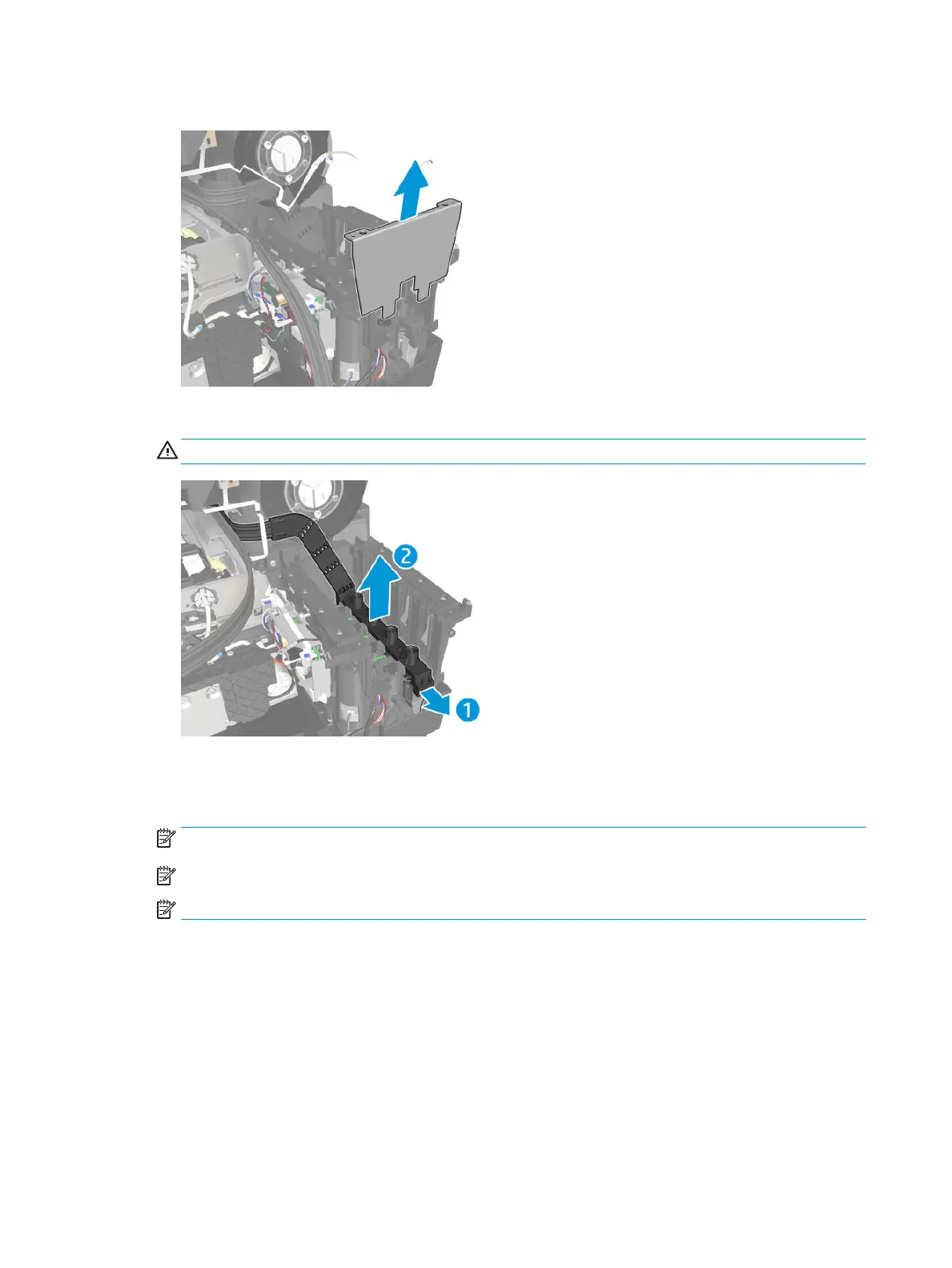

14. Remove the sheet metal wall.
15. Slide the Ink tubes needle mount out of the Ink Supply Station.
WARNING! Ink can drop to the ground from the holes, protect the ground with a cover.
Installation
▲
Install the RIDS by reversing the removal process.
NOTE: Make sure to reconnect the grounding cable.
NOTE: Make sure the Needle Mount is sliding in X and the sheet metal wall is assembled vertically.
NOTE: Check the encoder strip for any grease transfer and clean it if required.
498 Chapter 5 Removal and installation ENWW
