HP DesignJet T730

●

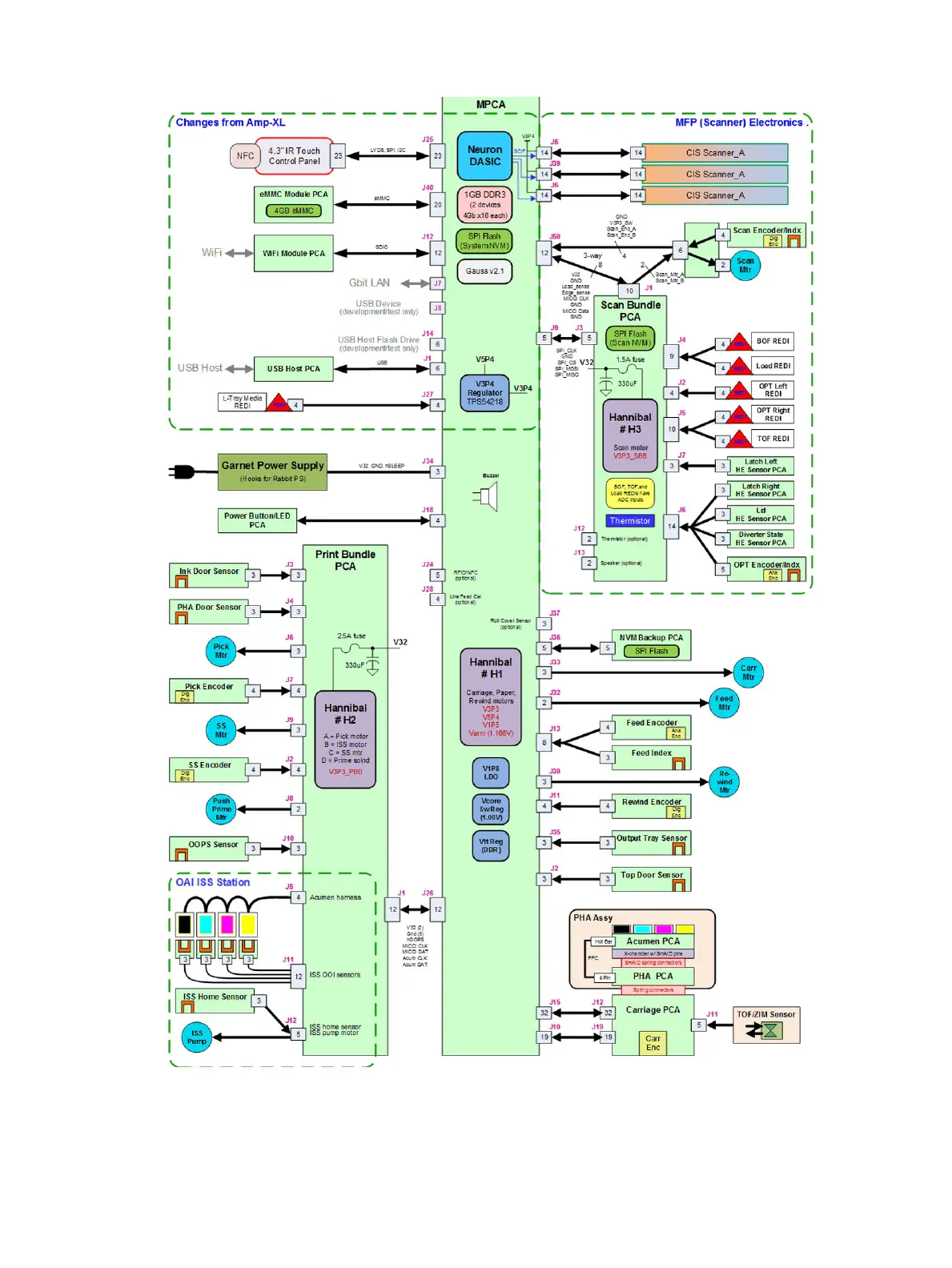

The printer contains a total of 21 PCAs in the SFP and 29 in the MFP. All sensors and encoders are on
PCAs; see the system block diagram (light green blocks represent PCAs).
●
The OOP sensor, Top Cover, and Feed Index are exactly the same board.
ENWW Subsystems 45
