HP DesignJet T730

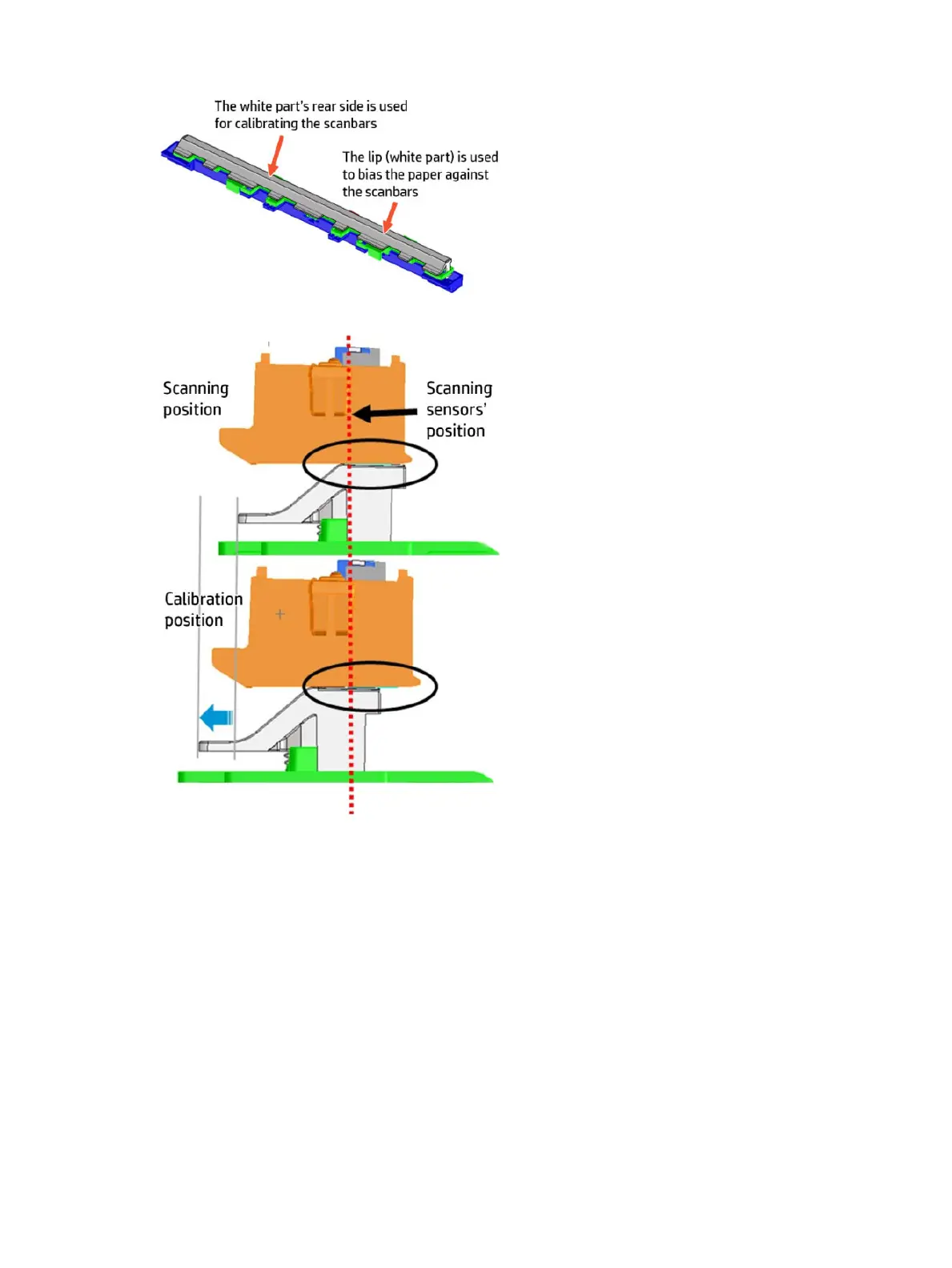

The sliders move 4 mm towards the front of the scanner pushed by cams during PRNU calibration process.
Once sliders are in the forward position, they will slide 4 mm towards the back of the scanner pushed by
cams. The cams are attached to a shaft with a gear at the right end. The transmission rotates the cam shaft
driven by the rear drive roller.
