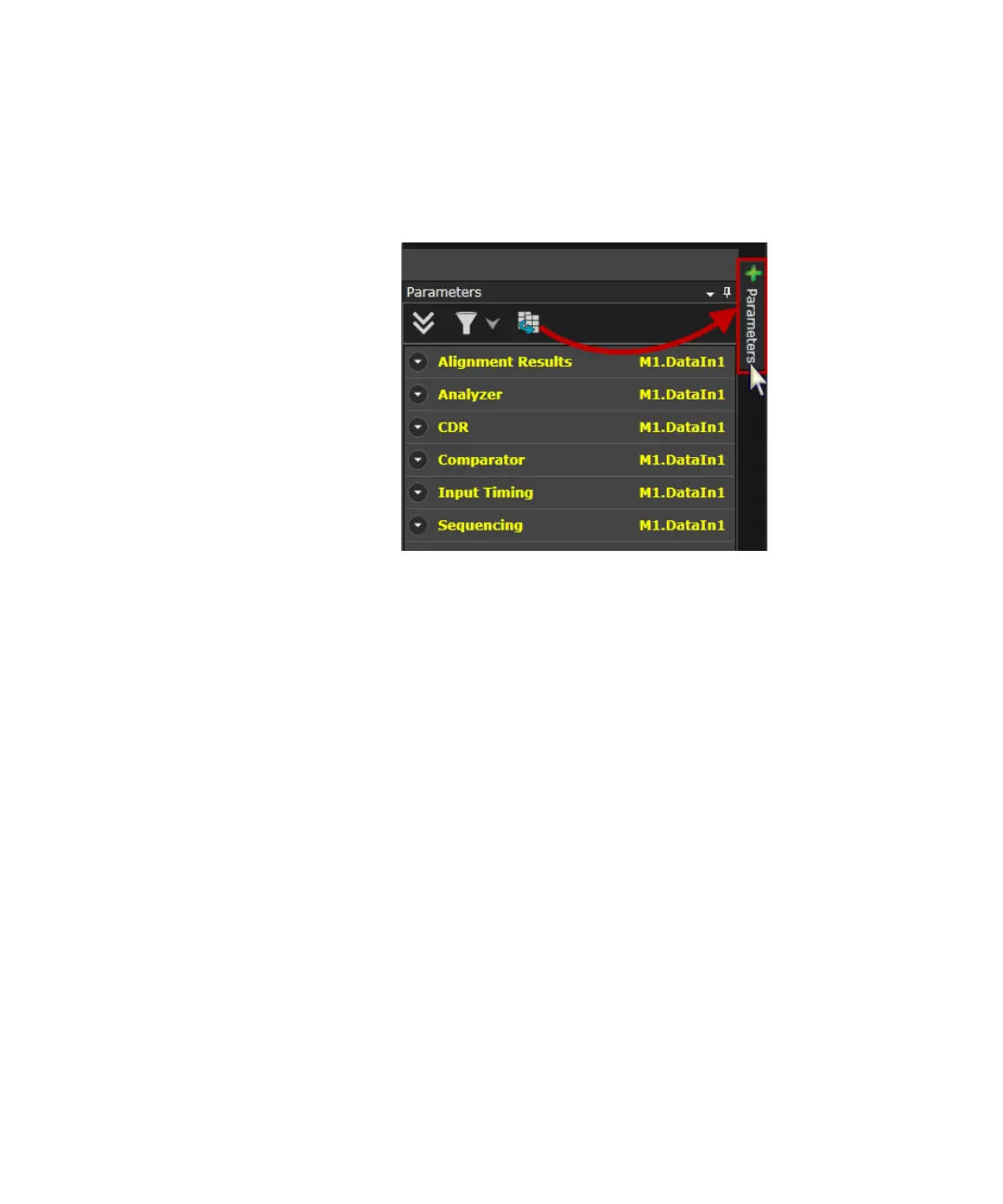

The following figure shows the copied parameters window docked to
the right edge of the main user interface.
• Display Grid: Displays the parameters of the selected port/port groups
within a grid. The left column contains the parameter names; the right
column contains the parameter values.
In addition, it also allows you to set the parameters of the selected
port/port groups.
The naming convention used for the port/port group is explained with
the help of following example:
M1.DataIn1
Where,
• M1 stands for Module1
• DataIn stands for DataIn port
• 1 for channel 1
The functional blocks use the different color schemes to represent
different channels. You can set the color schemes of each channel from
the Setting window. For details, refer to Settings Window on page 602.
• Parameter Description Pane: Provides the description and related
SCPI of the currently selected parameter.
The following figure shows the Parameter Description Pane providing
the description and the related SCPI when the line coding parameter is
selected.
