Keysight M8000 Series of BER Test Solutions User Guide 171
User Interface - M8020A Display Views 4

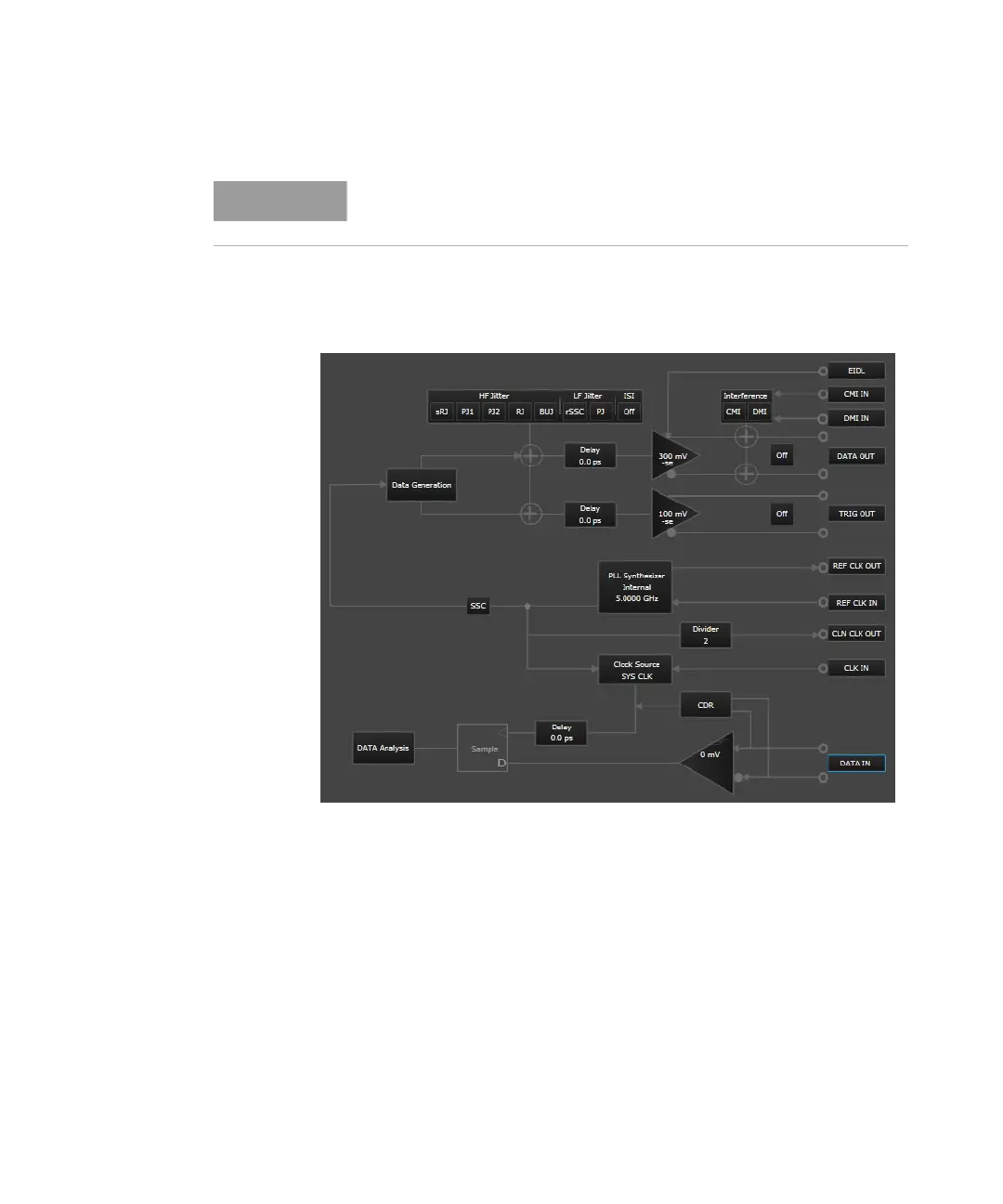

The following figure shows the System View of the M8062A module:
In the M8062A System View, the principal parts are represented by blocks
which are connected by lines/arrows to show the relationship of the
blocks. These blocks are highlighted by blue lines around the block on
mouse focus. Parameters corresponding to the selected block are
displayed in the Parameters window, on the right. The block may contain
feature elements (for example, LF Jitter contains PJ and rSSC). You can
click on the respective button to enable the feature elements. Once
enabled, the feature elements are highlighted in blue color. For more
details, refer to System View on page 156.
In addition to the blocks that are described in the section System View on
page 156, the M8062A System View has the following new blocks:
In 32G mode, access to some M8041A user controls are disabled to
facilitate software control of this configuration.
