Keysight M8000 Series of BER Test Solutions User Guide 91
Quick Tour with M8070A User Interface 3
• Save Instrument State... - Opens the Save Instrument State dialog
which allows you to save the current instrument state.
For more details, refer to Save Instrument State on page 123.
• Exit - Closes the M8070A user interface.
Application Menu
The Application menu allows you to select application specific features for
the following:
• PCI Express
•USB
•SATA
• MIPI C-PHY/D-PHY (Included in separately available MIPI plug-in)
• 10 GBASE KR Link Training (For details, refer to the 10 GBASE KR Link
Training User Guide)
On selecting any of these standards from the Application menu, a
standard specific dialog or plug-in interface will appear.
System Menu
The System menu allows you to launch the various display views provided
by M8020A/M8030A/M8040A. It provides the following selections:

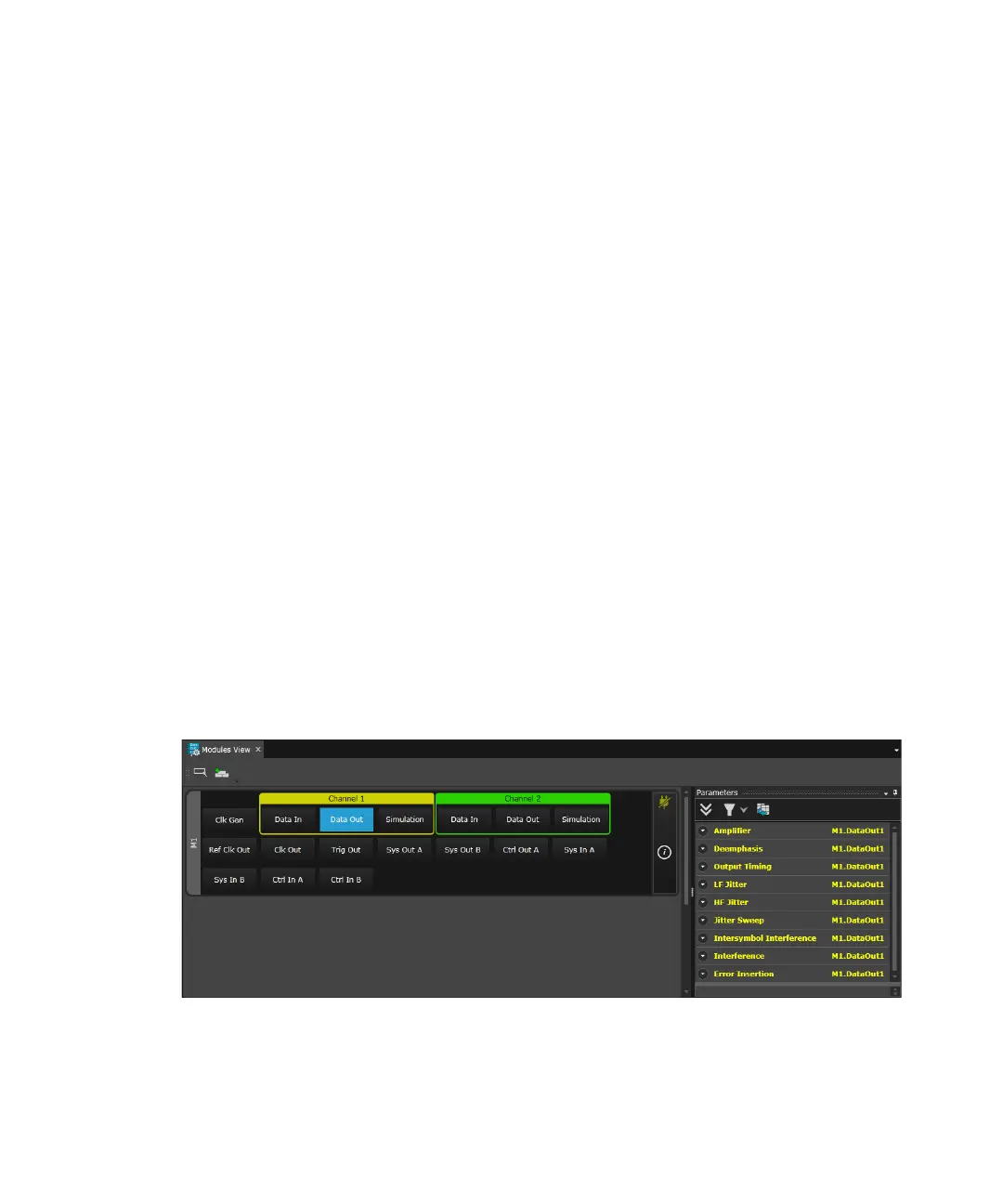

• Module View - Opens the Module View user interface as shown in the
following figure:
